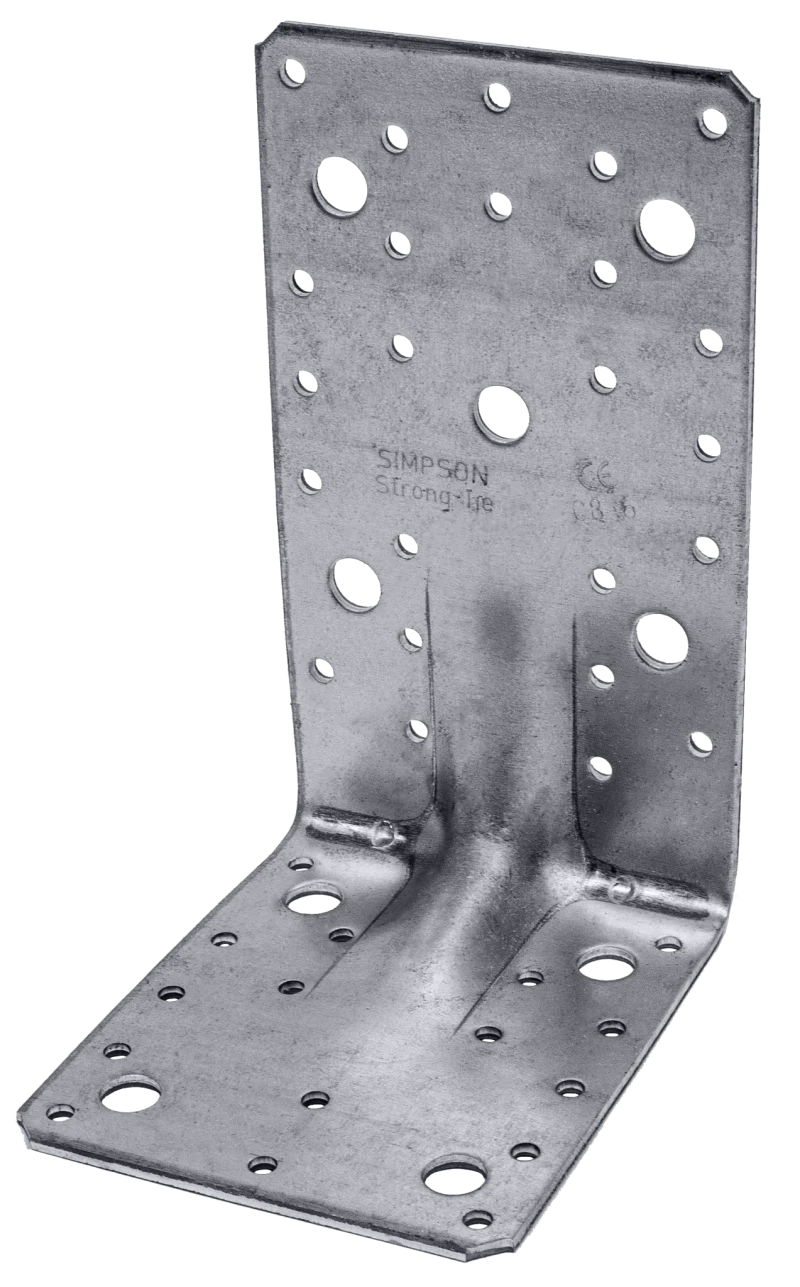

Simpson Strong-Tie E20/3 E 6-3/4 in. x 3-3/4 in. Angle Bracket for Cross-Laminated Timber
SKU: E20/3
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Simpson Strong-Tie® E angle brackets are used to connect cross-laminated timber (CLT) wall panels to concrete slabs. A wide variety of fastener and anchor options are available depending on the required loads and application. The E20/3 angle bracket has been load-rated with up to a 2-inch gap between the bottom of the CLT wall and the top of concrete slab. This gap allows the wall to be separated with a pressure-treated sill plate, concrete curb, grout pad, or other specified material.
Available Sizes & Options
Product Details
Key Features
- Loads provided for screws or nails
- All load directions addressed
- Heavy gauge provides high load capacity
- Anchorage to concrete
- Load-rated with up to a 2-inch base-of-wall gap
Material
- 11 gauge
Finish
- Galvanized
Installation
- Use all specified fasteners and anchors
- Follow installation images
