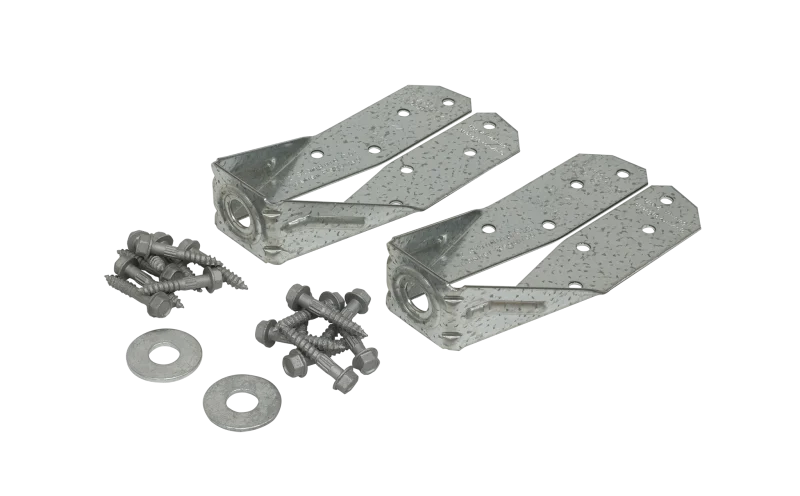

Simpson Strong-Tie DTT2Z-R2 DTT2Z® ZMAX® Galvanized Deck Tension Tie for 2x with 1-1/2 in. SDS Screws (2-Qty) (Pack of 720)
SKU: DTT2Z-R2
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
The Simpson Strong-Tie® DTT2Z® tension tie is a safe, cost-effective way to attach deck-railing posts to the deck framing for stronger, safer railings. Because the post is tied back into the deck joists, rather than to the rim joist alone, the connection is stronger than typical through-bolt installations. The DTT2Z is also ideal for guardrail-post connections and lateral-load connections between the deck and house.
Available Sizes & Options
Product Details
Key Features
- Provides a code-compliant 1,500 lb. lateral load connection per IRC R507.9.2(1) at two deck locations
- Ideal for securing decks to supporting structures or reinforcing guardrail post connections
- Includes Strong-Drive® SDS Heavy-Duty Connector screws for quick, reliable installation
- Installs on the wide face of a single or double 2x member for flexible application options
- Accepts a 1/2"-diameter bolt or anchor bolt for structural anchorage flexibility
- Compatible with new construction or retrofit applications requiring high lateral load capacity
Material
- See Table
Finish
- ZMAX coating and stainless steel
Installation
- Installation Guide for DTT2Z
- Use all specified fasteners; see Holdown and Tension Tie General Notes
- DTT2Z and DTT2SS are installed on the wide face of a single or double 2x member
- Acceptable anchorage includes a 1/2"-diameter bolt or anchor bolt
- A standard cut washer (included) must be installed between the nut and the seat
- Strong-Drive® SDS Heavy-Duty Connector screws (SDS) install with a 3/8" hex-head driver (Model BITHEXR38-R1)
- For DTT2SS installations, use only stainless steel fasteners in corrosive or high-exposure environments
Catalog Pages
Patent Information
- US Patent 8,555,580
