Simpson Strong-Tie DTT2SS-SDS2.5 DTT2SS™ Stainless-Steel Deck Tension Tie for 2x with 2-1/2 in. SDS Screws
Hangers

Simpson Strong-Tie DTT2SS-SDS2.5 DTT2SS™ Stainless-Steel Deck Tension Tie for 2x with 2-1/2 in. SDS Screws

SKU: DTT2SS-SDS2.5
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

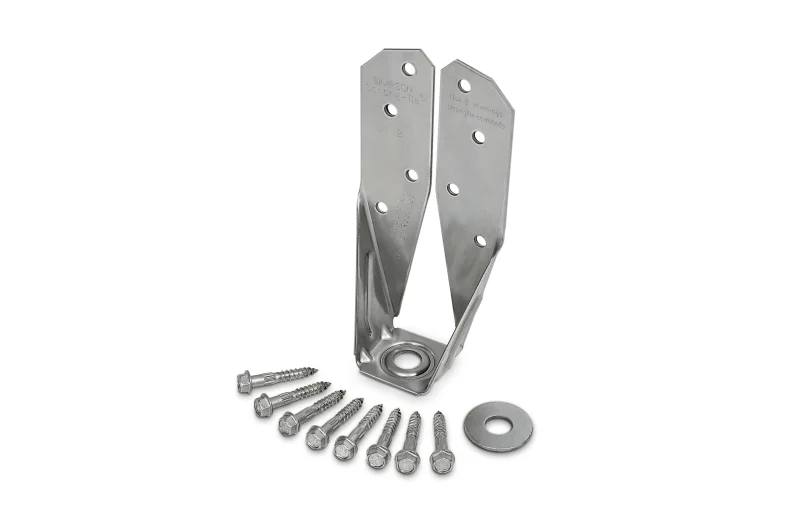

The Simpson Strong-Tie® DTT2SS™ is made from stainless steel for applications in higher exposure environments. Whether it's a deck guardrail post application or the lateral-load connection from the deck to the adjacent structure, the stainless-steel DTT2SS is the best choice for seaside applications or those calling for more corrosive preservative-treated lumber formulations. It fastens to the framing members with stainless-steel Simpson Strong-Tie Strong-Drive® SDS wood screws (included).

Available Sizes & Options

SKUProductStatus
DTT2SS-SDS2.5Simpson Strong-Tie DTT2SS-SDS2.5 DTT2SS™ Stainless-Steel Deck Tension Tie for 2x with 2-1/2 in. SDS Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Provides a code-compliant 1,500 lb. lateral load connection per IRC R507.9.2(1) at two deck locations
  • Ideal for securing decks to supporting structures or reinforcing guardrail post connections
  • Includes Strong-Drive® SDS Heavy-Duty Connector screws for quick, reliable installation
  • Installs on the wide face of a single or double 2x member for flexible application options
  • Accepts a 1/2"-diameter bolt or anchor bolt for structural anchorage flexibility
  • Compatible with new construction or retrofit applications requiring high lateral load capacity

Material

  • See Table

Finish

  • ZMAX coating and stainless steel

Installation

  • Installation Guide for DTT2Z
  • Use all specified fasteners; see Holdown and Tension Tie General Notes
  • DTT2Z and DTT2SS are installed on the wide face of a single or double 2x member
  • Acceptable anchorage includes a 1/2"-diameter bolt or anchor bolt
  • A standard cut washer (included) must be installed between the nut and the seat
  • Strong-Drive® SDS Heavy-Duty Connector screws (SDS) install with a 3/8" hex-head driver (Model BITHEXR38-R1)
  • For DTT2SS installations, use only stainless steel fasteners in corrosive or high-exposure environments

Related Links

Catalog Pages

Patent Information

  • US Patent 8,555,580
