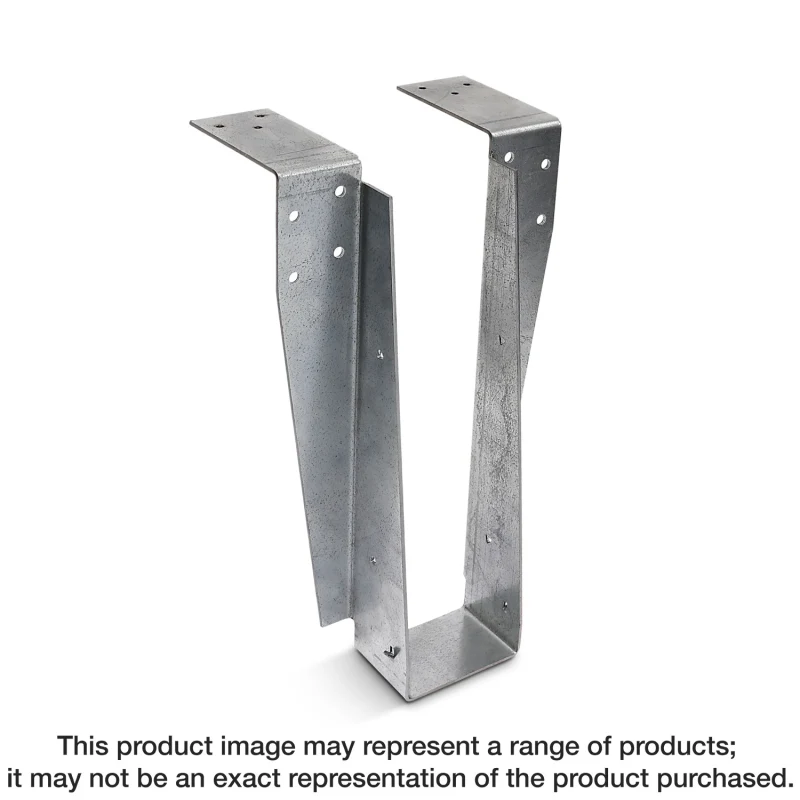

Simpson Strong-Tie DHU3.56/20TF DHUTF Top-Flange Drywall Hanger for 3-1/2 in. x 20 in. Engineered Wood with SDS Screws
Hangers

Simpson Strong-Tie DHU3.56/20TF DHUTF Top-Flange Drywall Hanger for 3-1/2 in. x 20 in. Engineered Wood with SDS Screws

SKU: DHU3.56/20TF
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHUTF top-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.

Available Sizes & Options

SKUProductStatus
DHU3.56/20TFSimpson Strong-Tie DHU3.56/20TF DHUTF Top-Flange Drywall Hanger for 3-1/2 in. x 20 in. Engineered Wood with SDS Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Available to order skewed up to 45°.
  • Testing verifies that the DHUTF hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls.
  • DHUTF fire wall hangers are code listed for structural use under ICC-ES ESR-2552.
  • Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01. If hangers are installed on both sides of the wall, then it must be a 2x6 wall.

Material

  • 12 gauge

Finish

  • Galvanized

Options

  • May be ordered skewed up to 45°. Use 75% of the table downloads and 50% of table uplift loads.

Installation

  • Use all specified fasteners; see General Notes.
  • Strong-Drive® SDS Heavy-Duty Connector screws are provided with the hanger.
  • Drywall is installed first.
  • Wall top plates must be restrained to prevent rotation. Where gravity load on top of wall is less than 150 plf, use a stud-plate tie connector at the back of each stud or provide equivalent restraint by another method as determined by designer.
  • Upper plate splices must occur at a stud location.

Related Links

Catalog Pages

Patent Information

  • US Patent 9,394,680

Buy Simpson Strong-Tie DHU3.56/20TF DHUTF Top-Flange Drywall Hanger for 3-1/2 in. x 20 in. Engineered Wood with SDS Screws in Central New Jersey
