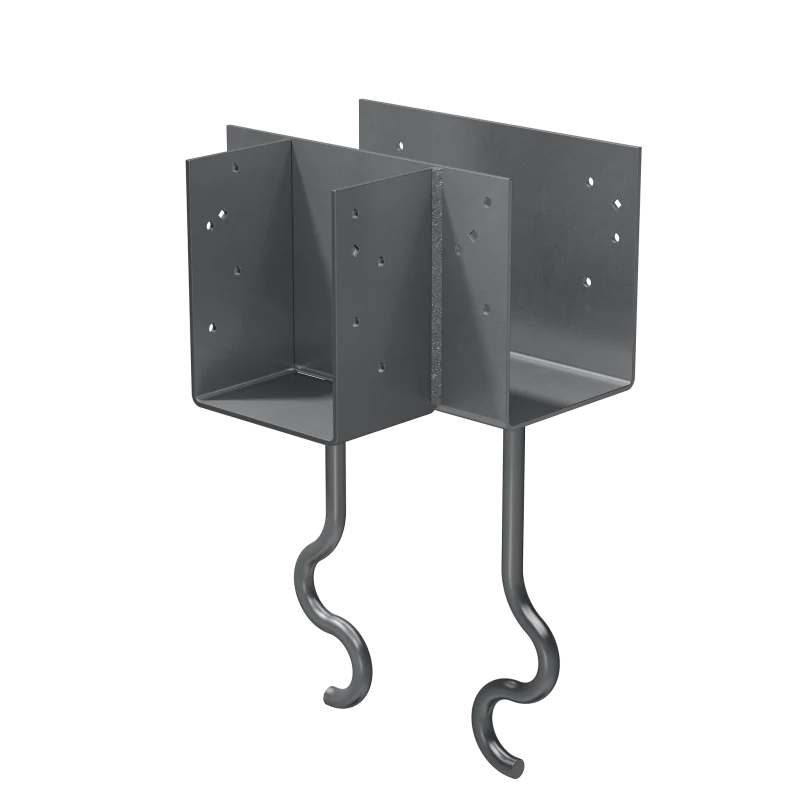

Simpson Strong-Tie CCTQM5.50-SDSG CCTQM® 5-1/2 in. T-Shape Column Cap for Masonry w/ SDS Screws
Hangers

Simpson Strong-Tie CCTQM5.50-SDSG CCTQM® 5-1/2 in. T-Shape Column Cap for Masonry w/ SDS Screws

SKU: CCTQM5.50-SDSG
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The CCTQM® embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCTQM is for use along a floor support beam and non-corner locations with a side stirrup to accommodate intermediate support beams at 90° angles.

Available Sizes & Options

SKUProductStatus
CCTQM5.50-SDSGSimpson Strong-Tie CCTQM5.50-SDSG CCTQM® 5-1/2 in. T-Shape Column Cap for Masonry w/ SDS Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • SSTB offset allows flush installation to edge of pier
  • SSTBs spaced to fit standard CMU cells

Material

  • 7 gauge

Finish

  • Hot-dip galvanized or Simpson Strong-Tie gray paint; see Corrosion Information

Options

  • Available in widths up to nominal 7-1/8" width.
  • For variable widths on side stirrups, specify W3 (3 1/4" to 7 1/8") and add an “X” to the end of the core model name. Example: CCTQM5.50X-SDSG, W3 = 3 5/8".

Installation

  • Install 1/4" x 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screws (provided) in all round holes. (Lag screws will not achieve the same load.)
  • Min. (4) #7 vertical rebar (total for pier).
  • No additional welding is allowed.

Ordering Information

  • Configurations for many different beams or beam-to-beam combinations can be manufactured (refer to Post-to-Beam Selector).
