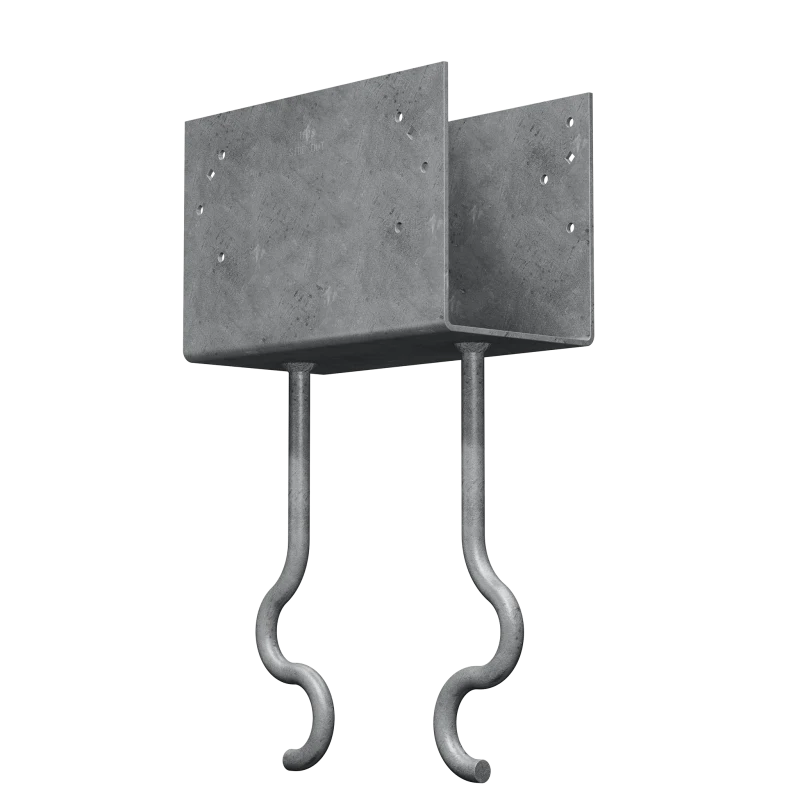

Simpson Strong-Tie CCQM5.50-SDS CCQM® Column Cap for 5-1/2 in. Beam, with Strong-Drive® SDS Screws
Product Description
Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. The CCQM® embedded column caps are designed for use in raised-pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seats and unique SSTB-style anchor bolts provide the high uplift and lateral resistance needed to help resist high wind events.
Available Sizes & Options
Product Details
Key Features
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- SSTB offset allows flush installation to edge of pier
- SSTBs spaced to fit standard CMU cells
Material
- 7 gauge
Finish
- Hot-dip galvanized or Simpson Strong-Tie gray paint; see Corrosion Information
Options
- Available in widths up to 7 1/8"
Installation
- Install 1/4" x 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screws (provided) in all round holes. (Lag screws will not achieve the same load.)
- Min. (4) #7 vertical rebar (total for pier).
- No additional welding is allowed.
Ordering Information
- Configurations for many different beams or beam-to-beam combinations can be manufactured (refer to Post-to-Beam Selector).
