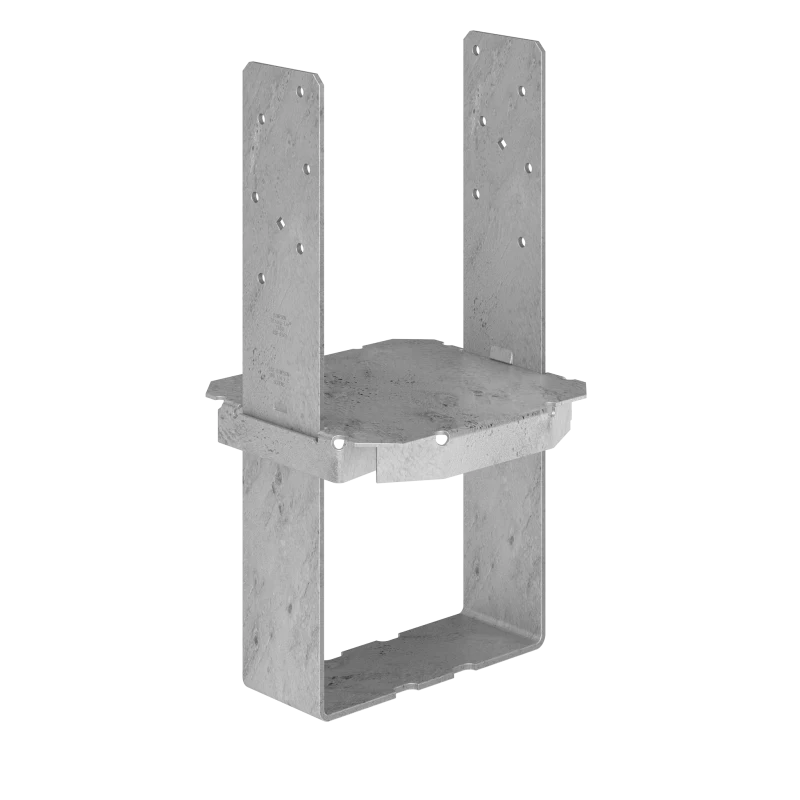

Simpson Strong-Tie CBSQ88-SDS2HDG CBSQ Hot-Dip Galvanized Standoff Column Base for 8x8 with SDS Screws
SKU: CBSQ88-SDS2HDG
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The CBSQ series provides a connection between a post (or column) for decks, patio covers and other top-supported structures.
Available Sizes & Options
Product Details
Key Features
- 1" standoff of the CBSQ meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Included fasteners provide faster installation than bolts
- SDS Heavy-Duty Connector screws that provide a greater wood net section area than bolts
Material
- See table
Finish
- Galvanized; some models available in HDG or stainless steel
Installation
- Installation Guide
- Use all specified fasteners; see General Notes.
- Install 1/4" x 2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column base. (Lag screws will not achieve the same load.)
- Install CBSQ with bottom of standoff flush to top of concrete
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
Ordering Information
- To order with screws, specify CBSQ-SDS2
- To order without screws, specify CBSQ
