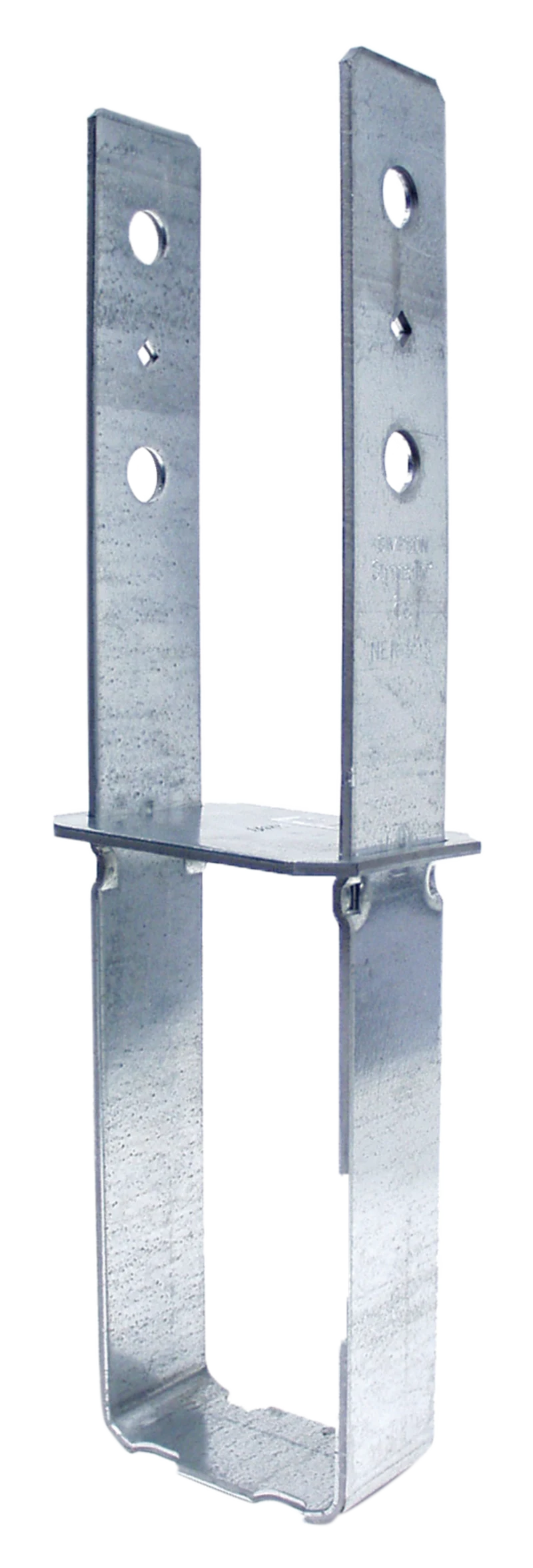

Simpson Strong-Tie CB44 CB Galvanized Column Base for 4x4
SKU: CB44
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Available Sizes & Options
Product Details
Key Features
- Increased uplift resistance for wind or seismic loading
- Bolt hole locations meet code-required spacing for optimal capacity
Material
- Strap: CB4x, CB5x, CB6x — 7 gauge; CB7x and larger — 3 gauge
- Base: CB4x through CB9x — 7 gauge; CB10x — 3 gauge
Finish
- CB44, CB46, CB48, CB66, CB68, CB610 — galvanized; all other CB — Simpson Strong-Tie gray paint or HDG. Some products available in HDG, stainless steel or black powder coat. (Note: When ordering powder coat, model number is CBxxPC.)
Options
- Some CBs are available in rough sizes; add the suffix ‘R’ to the standard model number.
- Other sizes available for CB; specify W1 and W2 dimensions. Consult Simpson Strong-Tie for bolt sizes and allowable loads.
Installation
- Installation Guide
- Use all specified fasteners; see General Notes
- For full loads, minimum side cover required is 3" for CB
- Install all models with bottom of base plate flush with concrete
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports)
