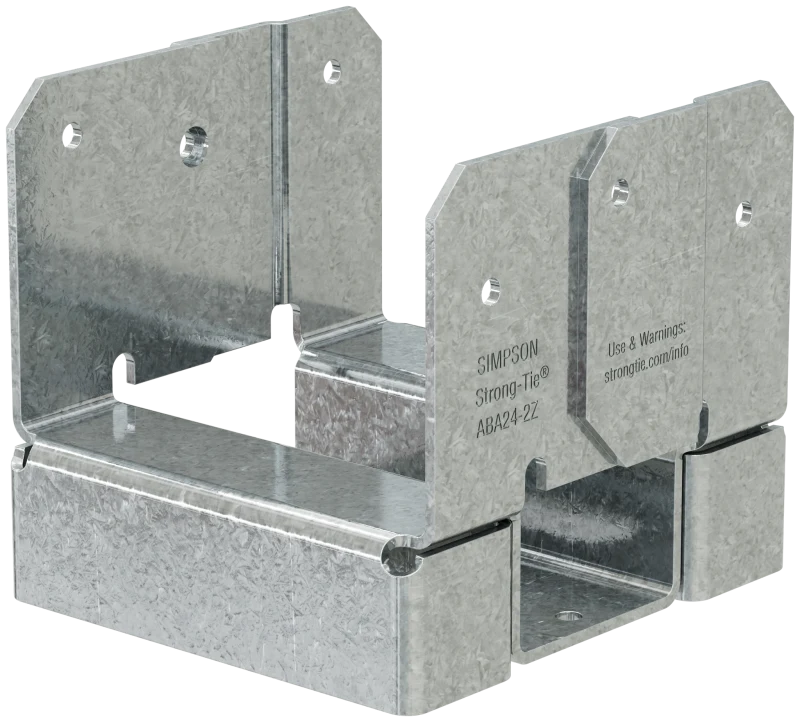

Simpson Strong-Tie ABA24-2Z ABA ZMAX® Galvanized Adjustable Standoff Post Base for Double 2x4
Hangers

Simpson Strong-Tie ABA24-2Z ABA ZMAX® Galvanized Adjustable Standoff Post Base for Double 2x4

SKU: ABA24-2Z
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The Simpson Strong-Tie® ABA is designed to attach wooden posts to existing concrete. The built-in 1-in. standoff of this adjustable post base helps to prevent rot at the end of the post. The ABA has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post base makes a cost-effective option for securing a post to the foundation.

Available Sizes & Options

SKUProductStatus
ABA24-2ZSimpson Strong-Tie ABA24-2Z ABA ZMAX® Galvanized Adjustable Standoff Post Base for Double 2x4 CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
  • 1" standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
  • Increased uplift loads for earthquake or wind loading

Material

  • See table

Finish

  • ZMAX®; see Corrosion Information

Installation

  • Installation Guide
  • Use all specified fasteners; see General Notes.
  • See our Anchoring, Fastening and Restoration Systems for Concrete and Masonry catalog for retrofit anchor options, such as Titen HD®, Stainless-Steel Titen HD or SET-3G™.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
  • Place the base, cut washer(s) and nut(s) on the anchor bolt(s). Make any necessary adjustments to post placement and tighten the nut securely on the anchor bolt.
  • Base anchors must extend less than 1" from concrete to avoid interference with standoff.
  • Place the post in the ABA and fasten using nails or Strong-Drive SD Connector screws.
