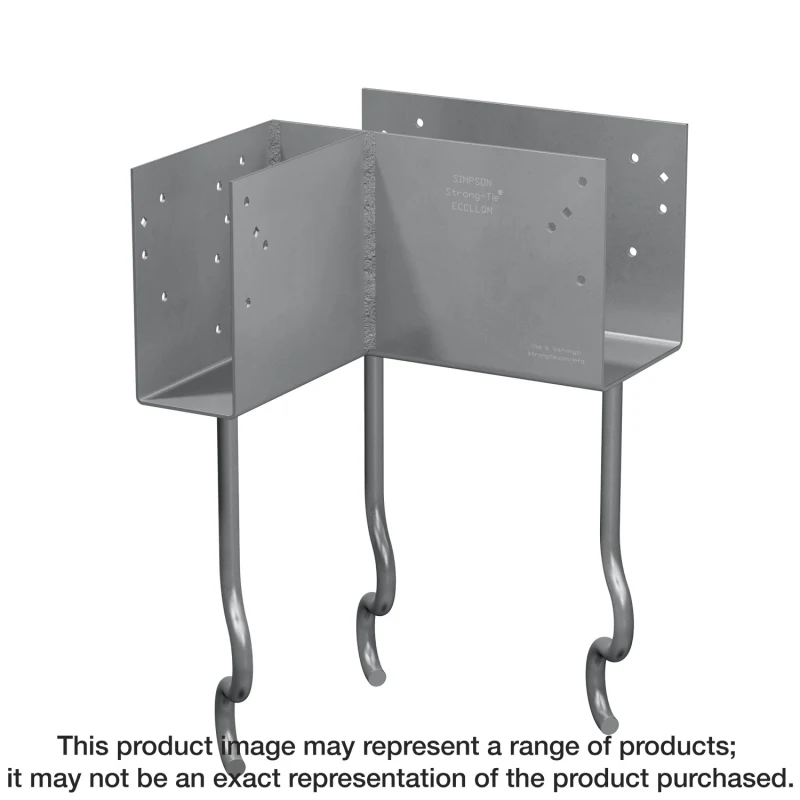

Simpson Strong-Tie Caps

SKU: ECCLQM4.62-KT
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie product. More info: https://www.strongtie.com/columncapsforcmuandconcretepiers_masonryconnectors/ecclqm_cap/p/ecclqm

Available Sizes & Options

SKUProductStatus
ECCLQM4.62-KTSimpson Strong-Tie Caps CurrentAvailable
10D5HDG-RSimpson Strong-Tie 10D5HDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3 in. x 0.148 in. HDG (250-Qty)Available
10DHDG-RSimpson Strong-Tie 10DHDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3 in. x 0.148 in. HDG (50-Qty)Available
16D5HDG-RSimpson Strong-Tie 16D5HDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3-1/2 in. x 0.162 in. HDG (200-Qty)Available
16DHDG-RSimpson Strong-Tie 16DHDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3-1/2 in. x 0.162 in. HDG (40-Qty)Available
516TH4Simpson Strong-Tie 5/16 x 4 Timber Hex ScrewAvailable
7/8 NUTSimpson Strong-Tie 7/8 NUT Uncoated Steel Hex Nut for 7/8 in. Rod (20-Qty)Available
8DBRPT2500Simpson Strong-Tie 8DBRPT2500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. Bright (2500-Qty)Available
8DHDGPT2500Simpson Strong-Tie 8DHDGPT2500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. HDG (2500-Qty)Available
8DHDGPT500Simpson Strong-Tie 8DHDGPT500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. HDG (500-Qty)Available
CB810PCSimpson Strong-Tie BasesAvailable
CB88PCSimpson Strong-Tie BasesAvailable
CB46PCSimpson Strong-Tie BasesAvailable
CB44PCSimpson Strong-Tie BasesAvailable
CB68PCSimpson Strong-Tie BasesAvailable
CB48PCSimpson Strong-Tie BasesAvailable
CNW1 1/4Simpson Strong-Tie CNW1 1/4 CNW 1-1/4 in. Coupler Nut with Witness® HoleAvailable
CNW1Simpson Strong-Tie CNW1 CNW 1 in. Coupler Nut with Witness® HoleAvailable
CNW1-7/8Simpson Strong-Tie CNW1-7/8 CNW 1 in. to 7/8 in. Coupler Nut with Witness® HoleAvailable
CNW1/2Simpson Strong-Tie CNW1/2 CNW 1/2 in. Coupler Nut with Witness® HoleAvailable
CNW3/4Simpson Strong-Tie CNW3/4 CNW 3/4 in. Coupler Nut with Witness® HoleAvailable

Product Details

Key Features

  • MSTQM straps to make the connection from the ECCLQM to the wall framing
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • SSTB offset allows flush installation to edge of pier
  • SSTBs spaced to fit in standard CMU cells

Material

  • 7 gauge

Finish

  • Column caps — hot-dip galvanized or Simpson Strong-Tie gray paint; strap (MSTQM) — galvanized (ZMAX®)

Options

  • Available in widths up to nominal 7-1/8" width.
  • For variable widths on side stirrups, specify W3 (3 1/4" to 7 1/8") and add an “X” to the end of the core model name. Example: ECCLQM5.50GX-KT, W3 = 3 5/8".

Installation

  • Install 1/4" x 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screws (provided) in all round holes. (Lag screws will not achieve the same load.)
  • Min. (4) #7 vertical rebar (total for pier).
  • No additional welding is allowed.

Ordering Information

  • Configurations for many different beams or beam-to-beam combinations can be manufactured (refer to Post-to-Beam Selector).
