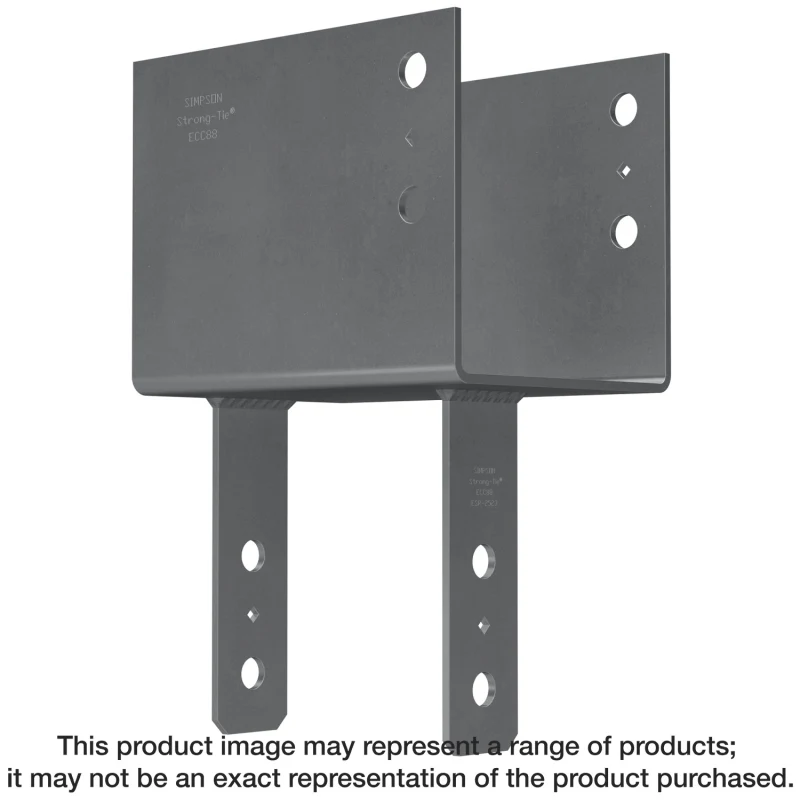

Simpson Strong-Tie Column Cap
Fasteners

Simpson Strong-Tie Column Cap

SKU: ECC88ROT
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie product. More info: https://www.strongtie.com/boltedcolumncaps_columncaps/ecc_cap/p/ecc

Available Sizes & Options

SKUProductStatus
ECC88ROTSimpson Strong-Tie Column Cap CurrentAvailable
10D5HDG-RSimpson Strong-Tie 10D5HDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3 in. x 0.148 in. HDG (250-Qty)Available
10DHDG-RSimpson Strong-Tie 10DHDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3 in. x 0.148 in. HDG (50-Qty)Available
16D5HDG-RSimpson Strong-Tie 16D5HDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3-1/2 in. x 0.162 in. HDG (200-Qty)Available
16DHDG-RSimpson Strong-Tie 16DHDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3-1/2 in. x 0.162 in. HDG (40-Qty)Available
516TH4Simpson Strong-Tie 5/16 x 4 Timber Hex ScrewAvailable
7/8 NUTSimpson Strong-Tie 7/8 NUT Uncoated Steel Hex Nut for 7/8 in. Rod (20-Qty)Available
8DBRPT2500Simpson Strong-Tie 8DBRPT2500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. Bright (2500-Qty)Available
8DHDGPT2500Simpson Strong-Tie 8DHDGPT2500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. HDG (2500-Qty)Available
8DHDGPT500Simpson Strong-Tie 8DHDGPT500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. HDG (500-Qty)Available
CB810PCSimpson Strong-Tie BasesAvailable
CB88PCSimpson Strong-Tie BasesAvailable
CB46PCSimpson Strong-Tie BasesAvailable
CB44PCSimpson Strong-Tie BasesAvailable
CB68PCSimpson Strong-Tie BasesAvailable
CB48PCSimpson Strong-Tie BasesAvailable
CNW1 1/4Simpson Strong-Tie CNW1 1/4 CNW 1-1/4 in. Coupler Nut with Witness® HoleAvailable
CNW1Simpson Strong-Tie CNW1 CNW 1 in. Coupler Nut with Witness® HoleAvailable
CNW1-7/8Simpson Strong-Tie CNW1-7/8 CNW 1 in. to 7/8 in. Coupler Nut with Witness® HoleAvailable
CNW1/2Simpson Strong-Tie CNW1/2 CNW 1/2 in. Coupler Nut with Witness® HoleAvailable
CNW3/4Simpson Strong-Tie CNW3/4 CNW 3/4 in. Coupler Nut with Witness® HoleAvailable

Product Details

Key Features

  • Certified welds for confidence in strength and loading
  • Uplift loads increased for earthquake or wind loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening

Material

  • ECC3 1/4, ECC44, ECC46, ECC48, ECC4.62, ECC64, ECC66, ECC68, ECC6-7 1/8 — 7 gauge; all others — 3 gauge

Finish

  • Simpson Strong-Tie gray paint. Some products available in HDG, stainless steel or black powder coat.

Options

  • Straps may be rotated 90° where W1 ≥ W2 (see illustration) and for CC5 1/4-6.
  • For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)

Installation

  • Use all specified fasteners; see General Notes
  • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2015 NDS, section 12.1.3.2); bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
  • Contact engineered wood manufacturers for connections that are not through the wide face

Ordering Information

Related Links

Catalog Pages
