Simpson Strong-Tie Column Base
Fasteners

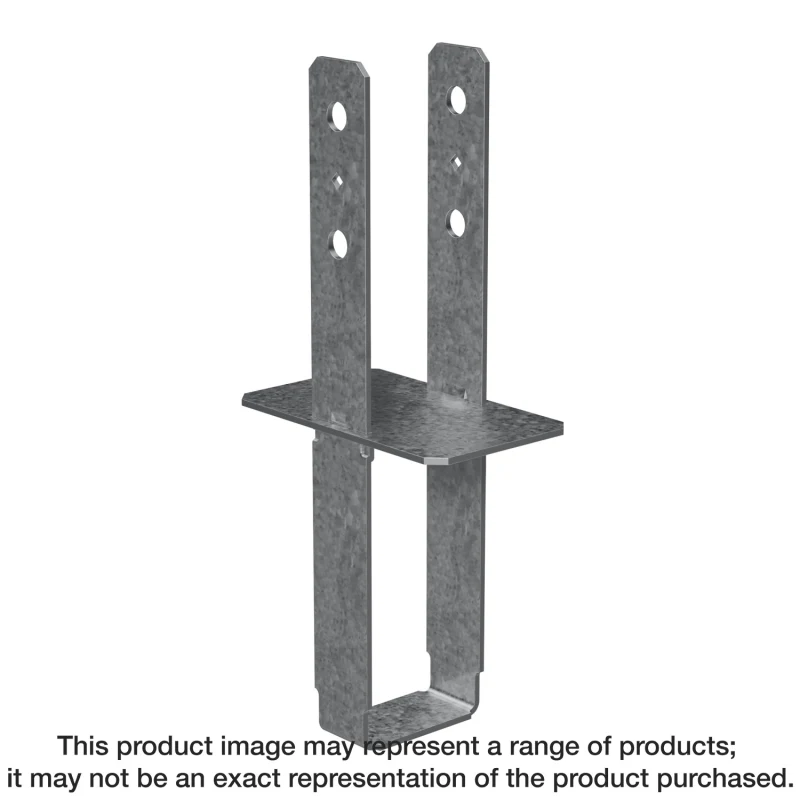

Simpson Strong-Tie Column Base

SKU: CB612
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie product. More info: https://www.strongtie.com/nonstandoffcolumnbases_columnbases/cb_base/p/cb

Available Sizes & Options

SKUProductStatus
CB612Simpson Strong-Tie Column Base CurrentAvailable
10D5HDG-RSimpson Strong-Tie 10D5HDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3 in. x 0.148 in. HDG (250-Qty)Available
10DHDG-RSimpson Strong-Tie 10DHDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3 in. x 0.148 in. HDG (50-Qty)Available
16D5HDG-RSimpson Strong-Tie 16D5HDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3-1/2 in. x 0.162 in. HDG (200-Qty)Available
16DHDG-RSimpson Strong-Tie 16DHDG-R Strong-Drive® SCN SMOOTH-SHANK CONNECTOR Nail — 3-1/2 in. x 0.162 in. HDG (40-Qty)Available
516TH4Simpson Strong-Tie 5/16 x 4 Timber Hex ScrewAvailable
7/8 NUTSimpson Strong-Tie 7/8 NUT Uncoated Steel Hex Nut for 7/8 in. Rod (20-Qty)Available
8DBRPT2500Simpson Strong-Tie 8DBRPT2500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. Bright (2500-Qty)Available
8DHDGPT2500Simpson Strong-Tie 8DHDGPT2500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. HDG (2500-Qty)Available
8DHDGPT500Simpson Strong-Tie 8DHDGPT500 Strong-Drive® 33° SCN SMOOTH-SHANK CONNECTOR Nail — 2-1/2 in. x .131 in. HDG (500-Qty)Available
CB810PCSimpson Strong-Tie BasesAvailable
CB88PCSimpson Strong-Tie BasesAvailable
CB46PCSimpson Strong-Tie BasesAvailable
CB44PCSimpson Strong-Tie BasesAvailable
CB68PCSimpson Strong-Tie BasesAvailable
CB48PCSimpson Strong-Tie BasesAvailable
CNW1 1/4Simpson Strong-Tie CNW1 1/4 CNW 1-1/4 in. Coupler Nut with Witness® HoleAvailable
CNW1Simpson Strong-Tie CNW1 CNW 1 in. Coupler Nut with Witness® HoleAvailable
CNW1-7/8Simpson Strong-Tie CNW1-7/8 CNW 1 in. to 7/8 in. Coupler Nut with Witness® HoleAvailable
CNW1/2Simpson Strong-Tie CNW1/2 CNW 1/2 in. Coupler Nut with Witness® HoleAvailable
CNW3/4Simpson Strong-Tie CNW3/4 CNW 3/4 in. Coupler Nut with Witness® HoleAvailable

Product Details

Key Features

  • Increased uplift resistance for wind or seismic loading
  • Bolt hole locations meet code-required spacing for optimal capacity

Material

  • Strap: CB4x, CB5x, CB6x — 7 gauge; CB7x and larger — 3 gauge
  • Base: CB4x through CB9x — 7 gauge; CB10x — 3 gauge

Finish

  • CB44, CB46, CB48, CB66, CB68, CB610 — galvanized; all other CB — Simpson Strong-Tie gray paint or HDG. Some products available in HDG, stainless steel or black powder coat. (Note: When ordering powder coat, model number is CBxxPC.)

Options

  • Some CBs are available in rough sizes; add the suffix ‘R’ to the standard model number.
  • Other sizes available for CB; specify W1 and W2 dimensions. Consult Simpson Strong-Tie for bolt sizes and allowable loads.

Installation

  • Installation Guide
  • Use all specified fasteners; see General Notes
  • For full loads, minimum side cover required is 3" for CB
  • Install all models with bottom of base plate flush with concrete
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports)
