Product Description

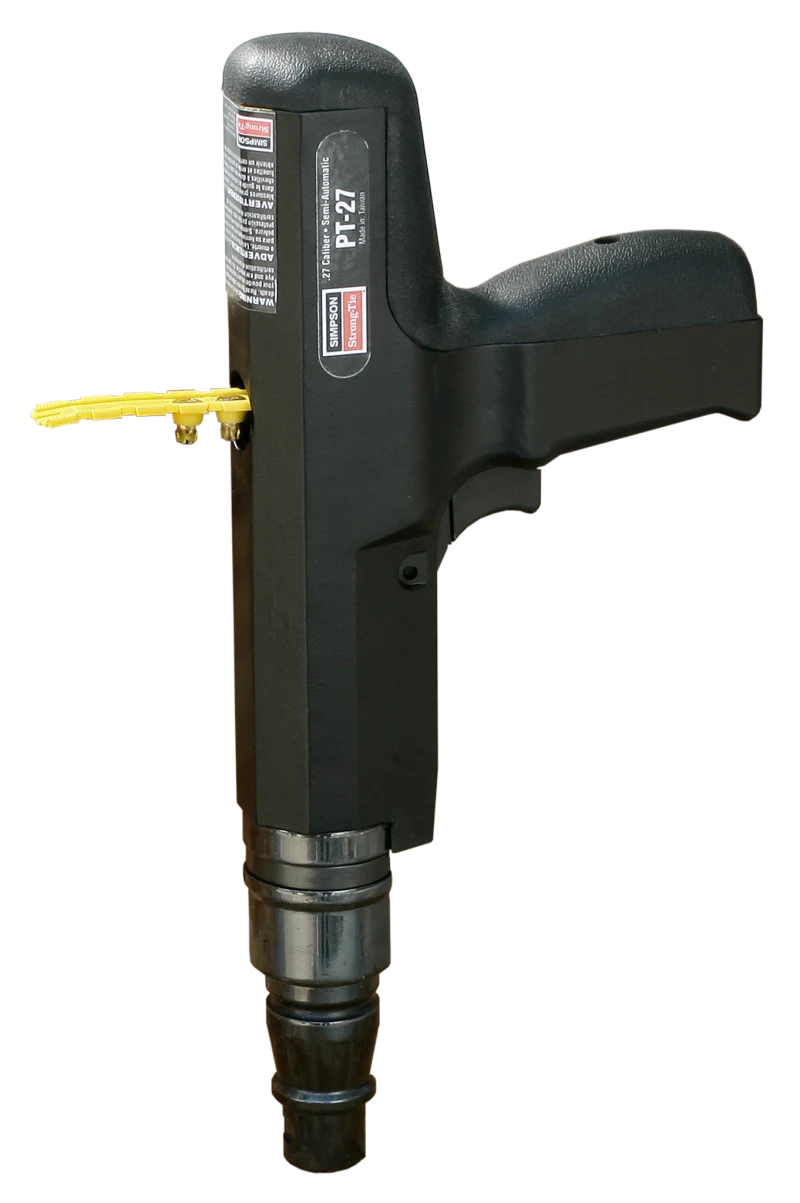

Simpson Strong-Tie offers a full range of direct fastening systems designed to provide rugged reliability while keeping the job moving as fast as possible. They are also tested in the field to meet the most demanding needs of the professional. The PT-27 general purpose tool is capable of firing a variety of fastener types and lengths. Semi-automatic, fast-cycling and reliable, the PT-27 is engineered for continuous use and low maintenance.

Available Sizes & Options

SKUProductStatus
PT-27Simpson Strong-Tie PT-27 PT-27 General-Purpose Tool CurrentAvailable
GCN-PPA020Simpson Strong-Tie BatteryAvailable
GCN-CHG007Simpson Strong-Tie Battery ChargerAvailable
GCN-ADP012Simpson Strong-Tie Charger AdapterAvailable
GFC34Simpson Strong-Tie Fuel CellAvailable
G-422Simpson Strong-Tie G-422 Magnetic Ring for G3 Gas-Actuated Fastening ToolAvailable
G3Simpson Strong-Tie G3 G3 Gas-Actuated Fastening ToolAvailable
G3-1120F08747021Simpson Strong-Tie G3-1120F08747021 Battery for G3 Gas-Actuated Fastening ToolAvailable
G3-1120L08747011Simpson Strong-Tie G3-1120L08747011 Battery Charger for G3 Gas-Actuated Fastening ToolAvailable
GDP-100KTSimpson Strong-Tie GDP-100KT GDP 1 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDP-150KTSimpson Strong-Tie GDP-150KT GDP 1-1/2 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDP-50KTSimpson Strong-Tie GDP-50KT GDP 1/2 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDP-75KTSimpson Strong-Tie GDP-75KT GDP 3/4 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDPS-75KTSimpson Strong-Tie GDPS-75KT GDPS 3/4 in. Shank Drive Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GWL-100Simpson Strong-Tie GWL-100 GWL Lathing Washer (1000-Qty)Available
PT-MK1Simpson Strong-Tie Maintenance KitAvailable
P22AC2Simpson Strong-Tie P22AC2 P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 2, Brown (100-Qty)Available
P22AC2ASimpson Strong-Tie P22AC2A P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 2, Brown - Imported (100-Qty) (Pack of 100)Available
P22AC3Simpson Strong-Tie P22AC3 P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 3, Green (100-Qty) (Pack of 100)Available
P22AC3ASimpson Strong-Tie P22AC3A P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 3, Green - Imported (100-Qty)Available
P22AC4Simpson Strong-Tie P22AC4 P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 4, Yellow (100-Qty) (Pack of 100)Available

Product Details

Applications

  • Acoustical ceilings
  • Electrical applications
  • Sill plates
  • Drywall track and cold-formed steel installation
  • Water proofing material and/or lathing

Product Includes

Tool is sold in a rugged tool box complete with:

  • User manual
  • Spall suppressor
  • Tools for disassembly
  • Safety glasses / ear plugs
  • Cleaning brushes
  • User exam and caution sign

Design Information and Load Tables

Specifications

  • Fastener Length: 1/2" – 2 1/2" (3" washered)
  • Fastener Type: .300" or 8 mm-headed fasteners or 1/4"-20 threaded studs
  • Firing Action: Semi-automatic
  • Load Caliber: 0.27 strip loads, brown through red (levels 2–5)
  • Length: 13 1/2"
  • Weight: 5 lb., 4 oz.

Repair Forms

Options

  • Extension pole tool for the PT-27 available in 6' and 8' lengths.
  • 6' Tool: PEPT6; 8' Tool: PEPT8
