Simpson Strong-Tie PDPAT-75 PDPAT 3/4-in. Powder-Driven Top-Hat Pin (100-Qty)
Direct Fastening

Simpson Strong-Tie PDPAT-75 PDPAT 3/4-in. Powder-Driven Top-Hat Pin (100-Qty)

SKU: PDPAT-75
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

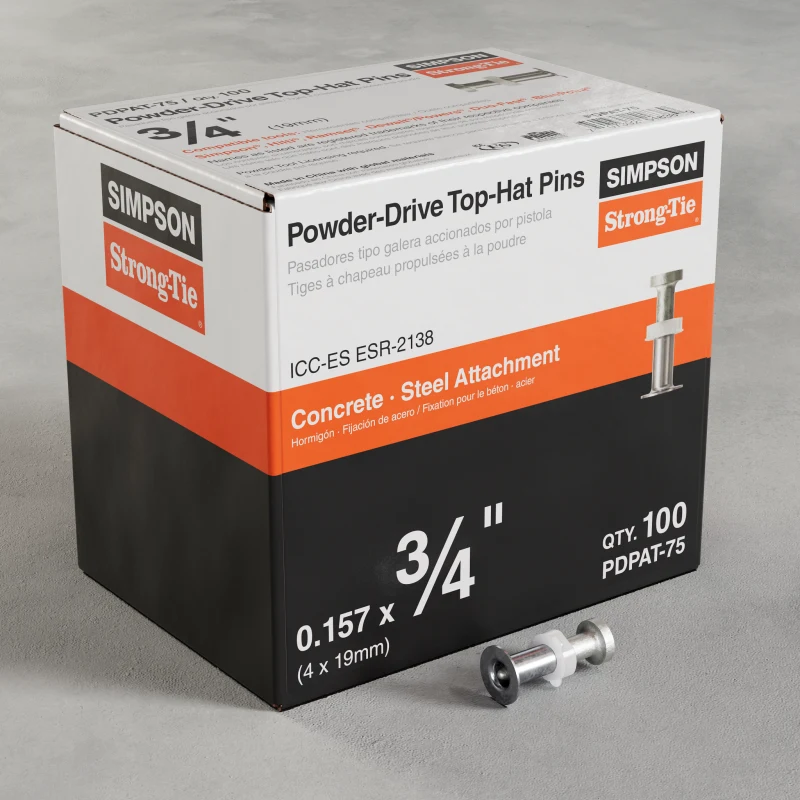

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort in most applications. The PDPAT is a hardened-steel, powder-actuated top-hat pin designed to fasten building components to concrete, steel and CMU. The PDPAT fastener has a 0.300-in. diameter head with a 0.157-in. diameter shank and a steel top-hat assembly for fast loading and centering of the pin in the nosepiece of the tool.

Available Sizes & Options

SKUProductStatus
PDPAT-75Simpson Strong-Tie PDPAT-75 PDPAT 3/4-in. Powder-Driven Top-Hat Pin (100-Qty) CurrentAvailable
GCN-PPA020Simpson Strong-Tie BatteryAvailable
GCN-CHG007Simpson Strong-Tie Battery ChargerAvailable
GCN-ADP012Simpson Strong-Tie Charger AdapterAvailable
GFC34Simpson Strong-Tie Fuel CellAvailable
G-422Simpson Strong-Tie G-422 Magnetic Ring for G3 Gas-Actuated Fastening ToolAvailable
G3Simpson Strong-Tie G3 G3 Gas-Actuated Fastening ToolAvailable
G3-1120F08747021Simpson Strong-Tie G3-1120F08747021 Battery for G3 Gas-Actuated Fastening ToolAvailable
G3-1120L08747011Simpson Strong-Tie G3-1120L08747011 Battery Charger for G3 Gas-Actuated Fastening ToolAvailable
GDP-100KTSimpson Strong-Tie GDP-100KT GDP 1 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDP-150KTSimpson Strong-Tie GDP-150KT GDP 1-1/2 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDP-50KTSimpson Strong-Tie GDP-50KT GDP 1/2 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDP-75KTSimpson Strong-Tie GDP-75KT GDP 3/4 in. Concrete Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GDPS-75KTSimpson Strong-Tie GDPS-75KT GDPS 3/4 in. Shank Drive Pin for Use with Gas-Actuated Concrete Nailer (1000-Qty)Available
GWL-100Simpson Strong-Tie GWL-100 GWL Lathing Washer (1000-Qty)Available
PT-MK1Simpson Strong-Tie Maintenance KitAvailable
P22AC2Simpson Strong-Tie P22AC2 P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 2, Brown (100-Qty)Available
P22AC2ASimpson Strong-Tie P22AC2A P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 2, Brown - Imported (100-Qty) (Pack of 100)Available
P22AC3Simpson Strong-Tie P22AC3 P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 3, Green (100-Qty) (Pack of 100)Available
P22AC3ASimpson Strong-Tie P22AC3A P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 3, Green - Imported (100-Qty)Available
P22AC4Simpson Strong-Tie P22AC4 P22AC 0.22-Caliber “A” Single-Shot Crimp Loads, LVL 4, Yellow (100-Qty) (Pack of 100)Available

Product Details

Key Features

  • The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
  • Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
  • Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools

Design Information and Load Tables
