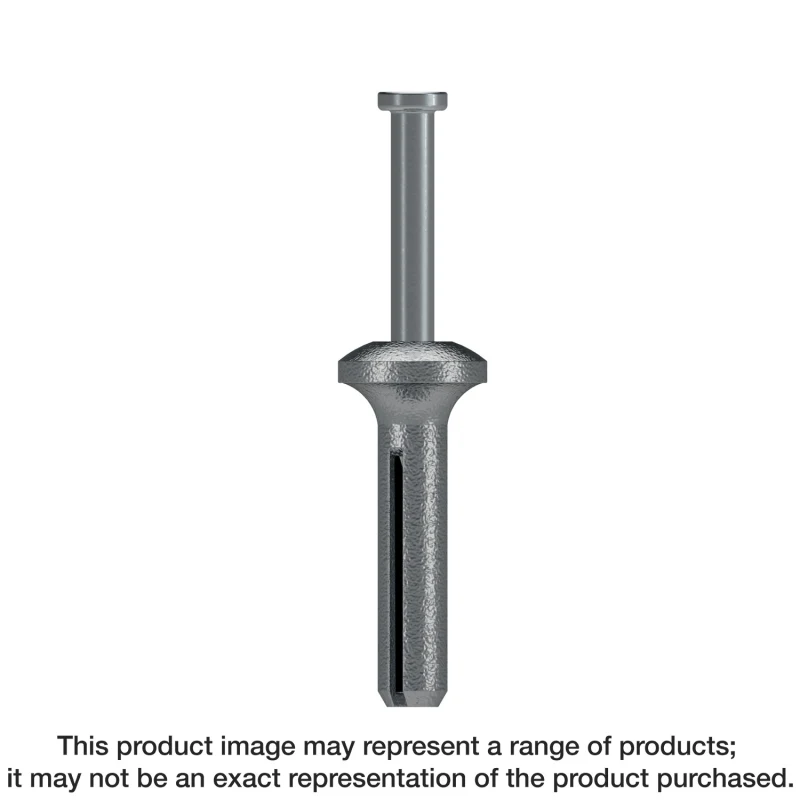

Simpson Strong-Tie ZN25034SS Zinc Nailon™ 1/4 in. x 3/4 in. Stainless-Steel Pin-Drive Anchor (100-Qty) (Pack of 420)
SKU: ZN25034SS
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Simpson Strong-Tie mechanical anchors are designed to install easily and securely into a variety of base materials, including concrete, grouted and hollow CMU and brick. Specifiers and contractors trust Simpson Strong-Tie anchors for optimum performance under the most demanding structural applications. Zinc Nailon anchors are low cost anchors for light-duty applications under static loads.
Available Sizes & Options
Product Details
Key Features
- Available with carbon and stainless-steel pins
- Pin and head configuration designed to make anchor tamper-resistant
Material
- Body — Die-cast Zamac 3 alloy
- Pin — Carbon steel; Type 304 stainless steel
Design Information and Load Tables
Caution
- Not for use in overhead applications
- Nailon anchors are not recommended for eccentric tension (prying) loads — capacity will be greatly reduced in such applications
Installation
- Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
- Position fixture and insert Nailon anchor.
- Tap with hammer until flush with fixture, then drive pin until flush with top of head.
