Product Description

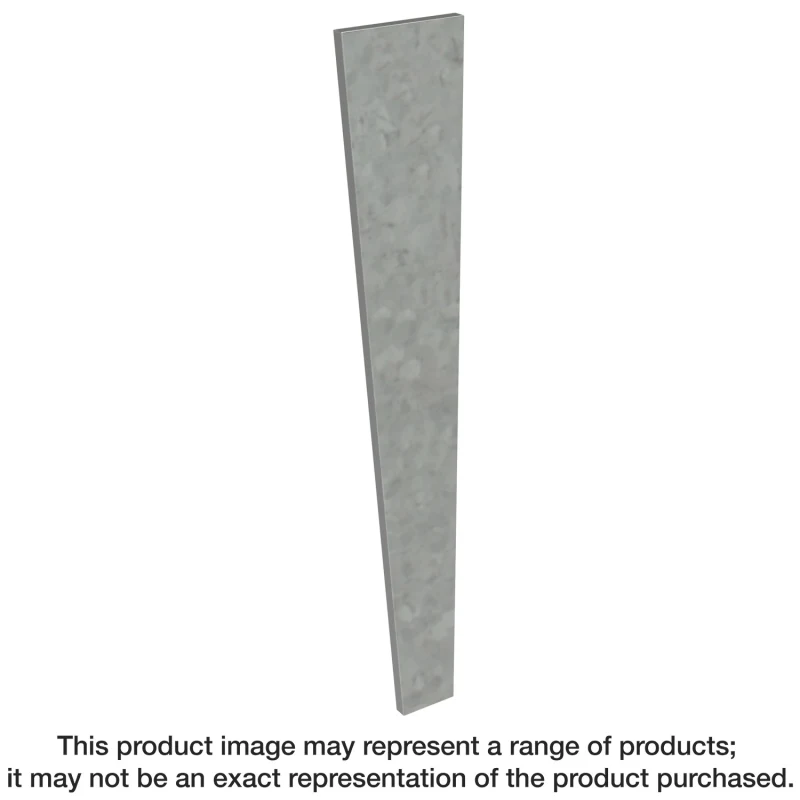

The W1 is a required component of the Simpson Strong-Tie® WT wedge form tie that is sold separately. The wedge tie (WT), a form tie that secures concrete forms in place while the concrete is poured, requires a wedge on each end to hold the form boards in place. These wedges are designed for easy installation into and removal from the provided slots.

Available Sizes & Options

SKUProductStatus
W1Simpson Strong-Tie W1 14-Gauge Galvanized Wedge for Form Ties (500-Qty) (Pack of 100) CurrentAvailable
3GWS3710PSimpson Strong-Tie 3GWS3710P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS373PSimpson Strong-Tie 3GWS373P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS376PSimpson Strong-Tie 3GWS376P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS5010PSimpson Strong-Tie 3GWS5010P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS503PSimpson Strong-Tie 3GWS503P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS506PSimpson Strong-Tie 3GWS506P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS6210PSimpson Strong-Tie 3GWS6210P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS623PSimpson Strong-Tie 3GWS623P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS626PSimpson Strong-Tie 3GWS626P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS7513PSimpson Strong-Tie 3GWS7513P Opti-Mesh 13 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
3GWS758PSimpson Strong-Tie 3GWS758P Opti-Mesh 8 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
ADT30SSimpson Strong-Tie ADT30S ADT30S Manual Dispensing Tool for 30 oz. CartridgeAvailable
ADT813SSimpson Strong-Tie ADT813S ADT813S Steel Adhesive Dispensing Tool for 12.5 oz. CartridgeAvailable
AM 1Simpson Strong-Tie AM 1 AnchorMate® 1-in. Dia. Anchor Bolt Holder — Black (100-Qty)Available
AM 1/2Simpson Strong-Tie AM 1/2 AnchorMate® 1/2-in. Dia. Anchor Bolt Holder — Yellow (100-Qty) (Pack of 60)Available
AM 3/4Simpson Strong-Tie AM 3/4 AnchorMate® 3/4-in. Dia. Anchor Bolt Holder — Red (100-Qty) (Pack of 60)Available
AM 5/8Simpson Strong-Tie AM 5/8 AnchorMate® 5/8-in. Dia. Anchor Bolt Holder — Blue (100-Qty) (Pack of 60)Available
AM 5/8-RP10Simpson Strong-Tie AM 5/8-RP10 AnchorMate® 5/8 in. Dia. Anchor Bolt Holder — Blue (10-Qty) (Pack of 5)Available
AM 7/8Simpson Strong-Tie AM 7/8 AnchorMate® 7/8-in. Dia. Anchor Bolt Holder — Green (100-Qty) (Pack of 60)Available
AMN19Q-RP5Simpson Strong-Tie AMN19Q-RP5 AMN19Q Acrylic-Tie Mixing Nozzle (5-Qty)Available

Product Details

Key Features

  • Designed and manufactured to work specifically with the WT
  • Tapered design accommodates expansion and contraction of wood as a result of moisture content
  • One size of W1 fits both composite and lumber WT models
  • The WT's 5/8" wide formed "V" design for rigidity allows accurate form spacing and support
  • Use two of these 3 1/2" long wedges for each WT tie

Material

  • 14 gauge

Finish

  • Galvanized

Installation

  • Two W1 wedges are required for each WT tie
  • Not recommended for wall pours greater than 4' high
  • Wall thickness from 6" to 12"

See the WT Wedge Form Tie for installation information and spacing tables.
