Product Description

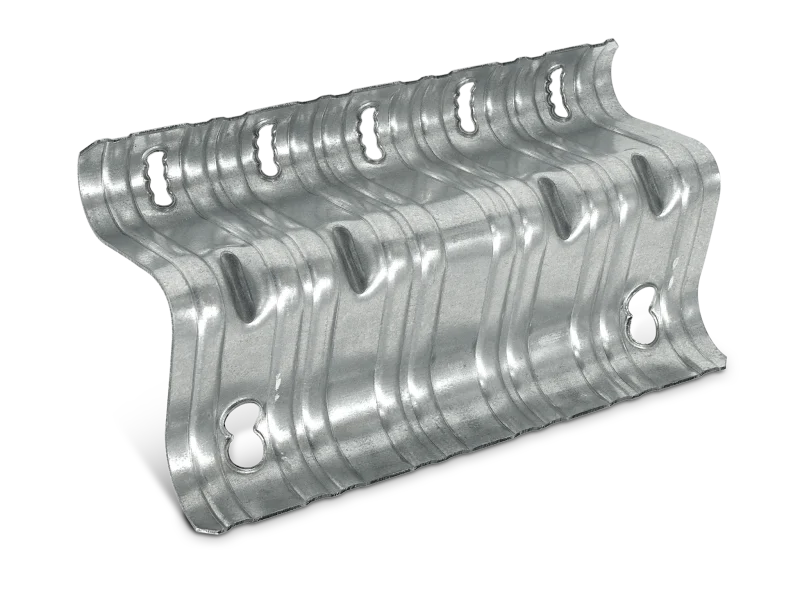

The URFP® is designed to provide a universal retrofit method to secure the mudsill to the foundation. The URFP scalloped, slotted hole feature allows installation flexibility when the mudsill is offset or inset from the foundation edge. With allowable loads deriving from longitudinal embossments and stiffening darts, the URFP may be used as a one-for-one replacement of 1/2 in. or 5/8 in. mudsill anchors.

Available Sizes & Options

SKUProductStatus
URFP-SDS3Simpson Strong-Tie URFP-SDS3 URFP® 10-5/8 in. x 6-1/4 in. Universal Retro Foundation Plate with Screws CurrentAvailable
3GWS3710PSimpson Strong-Tie 3GWS3710P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS373PSimpson Strong-Tie 3GWS373P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS376PSimpson Strong-Tie 3GWS376P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS5010PSimpson Strong-Tie 3GWS5010P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS503PSimpson Strong-Tie 3GWS503P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS506PSimpson Strong-Tie 3GWS506P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS6210PSimpson Strong-Tie 3GWS6210P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS623PSimpson Strong-Tie 3GWS623P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS626PSimpson Strong-Tie 3GWS626P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS7513PSimpson Strong-Tie 3GWS7513P Opti-Mesh 13 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
3GWS758PSimpson Strong-Tie 3GWS758P Opti-Mesh 8 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
ADT30SSimpson Strong-Tie ADT30S ADT30S Manual Dispensing Tool for 30 oz. CartridgeAvailable
ADT813SSimpson Strong-Tie ADT813S ADT813S Steel Adhesive Dispensing Tool for 12.5 oz. CartridgeAvailable
AM 1Simpson Strong-Tie AM 1 AnchorMate® 1-in. Dia. Anchor Bolt Holder — Black (100-Qty)Available
AM 1/2Simpson Strong-Tie AM 1/2 AnchorMate® 1/2-in. Dia. Anchor Bolt Holder — Yellow (100-Qty) (Pack of 60)Available
AM 3/4Simpson Strong-Tie AM 3/4 AnchorMate® 3/4-in. Dia. Anchor Bolt Holder — Red (100-Qty) (Pack of 60)Available
AM 5/8Simpson Strong-Tie AM 5/8 AnchorMate® 5/8-in. Dia. Anchor Bolt Holder — Blue (100-Qty) (Pack of 60)Available
AM 5/8-RP10Simpson Strong-Tie AM 5/8-RP10 AnchorMate® 5/8 in. Dia. Anchor Bolt Holder — Blue (10-Qty) (Pack of 5)Available
AM 7/8Simpson Strong-Tie AM 7/8 AnchorMate® 7/8-in. Dia. Anchor Bolt Holder — Green (100-Qty) (Pack of 60)Available
AMN19Q-RP5Simpson Strong-Tie AMN19Q-RP5 AMN19Q Acrylic-Tie Mixing Nozzle (5-Qty)Available

Product Details

Key Features

  • Ideal where vertical clearance is minimal
  • Increased loads for wind or earthquake loading

Material

  • 14 gauge

Finish

  • Galvanized (G90) or hot-dip galvanized. See Corrosion Information.

Installation

  • Installation Guide
  • Use all specified fasteners; see General Notes
  • Install using 1/4" x 3" Strong-Drive® SDS Heavy-Duty Connector screws, which are supplied
  • Using lag screws as a fastening alternative will not achieve published loads
  • URFP can accommodate larger offsets with a shim; shim size and attachment by designer
