Simpson Strong-Tie THD50612HMG Titen HD® 1/2 in. x 6-1/2 in. Mechanically Galvanized Heavy-Duty Screw Anchor (20-Qty) (Pack of 216)
Product Description

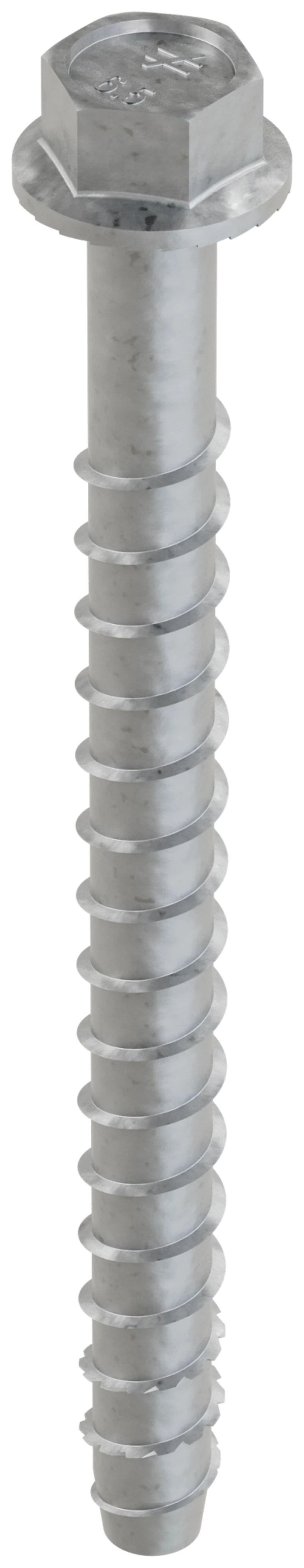

The Simpson Strong-Tie® Titen HD® heavy-duty screw anchor is a mechanically galvanized high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. Its proprietary heat treatment and ASTM B695 Class 65 mechanically galvanized coating make it ideal for both interior and exterior anchoring applications. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove for use in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.
Available Sizes & Options
Product Details
Key Features
- Head-stamped for easy identification
- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Material
- Carbon steel
Finish
- Mechanically galvanized
Design Information and Load Tables
Caution
- Holes in metal fixtures to be mounted should match the diameter specified in the table below.
- Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
- Do not use impact wrenches to install into hollow CMU.
- Oversized holes in base material will reduce or eliminate the mechanical interlock of the threads with the base material and reduce the anchor’s load capacity.
- Installation of concrete screw generally is influenced by many factors such as but not limited to, concrete compressive strength, type of aggregate, installation location, installation direction and tools used for installation.
Installation
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus minimum hole depth overdrill (see table below) to allow the thread tapping dust to settle, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling and tapping.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
| Titen HD Diameter (in.) | Wrench Size (in.) | Recommended Fixture Hole Size (in.) | Min. Hole Depth Overdrill (in.) |
|---|---|---|---|
| Suggested fixture hole sizes are for structural steel thicker than 12 gauge only. Larger holes are not required for wood or thinner cold-formed steel members. | |||
| 3/8 | 9/16 | 1/2 to 9/16 | 1/4 |
| 1/2 | 3/4 | 5/8 to 11/16 | 1/2 |
| 5/8 | 15/16 | 3/4 to 13/16 | 1/2 |
| 3/4 | 1 1/8 | 7/8 to 15/16 | 1/2 |
