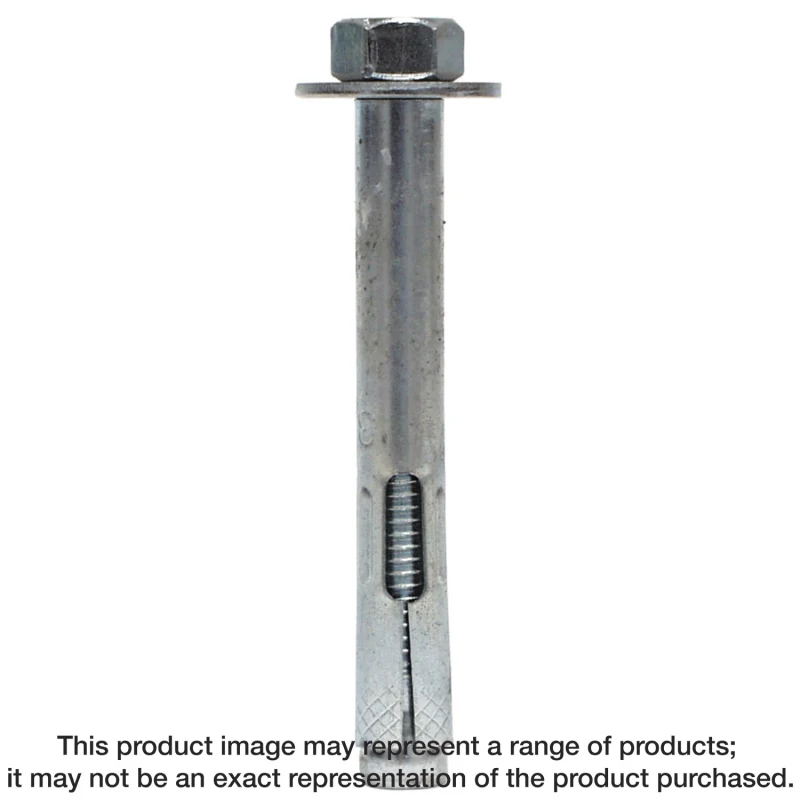

Simpson Strong-Tie SL50214H Sleeve-All® 1/2 in. x 2-1/4 in. Hex-Head Sleeve Anchor (50-Qty) (Pack of 4)
Product Description
From complex infrastructure projects to do-it-yourself ventures, Simpson Strong-Tie offers a wide variety of anchoring products to meet virtually any need. Our mechanical anchors are designed to install easily and securely into a variety of base materials, including concrete and brick to hollow and grouted CMU. They offer optimal performance even in the most demanding structural applications. Sleeve-All expanding anchors are pre-assembled, expanding sleeve anchors for use in all types of solid base materials. These anchors are available in acorn, hex, rod coupler and flat head styles for a wide range of applications.
Available Sizes & Options
Product Details
Material
- Carbon steel or stainless steel
Finish
- Carbon steel anchors are zinc plated
Design Information and Load Tables
Caution
- Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity
Installation
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Drill the hole to the specified embedment depth, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to required installation torque.
| Sleeve-All Diameter (in.) | Drill Bit Size (in.) | Wrench Size (in.)1 | Phillips Drive Size2 | Wrench Size for Coupler Nut (in.) | Concrete Installation Torque (ft.-lbf.) |
|---|---|---|---|---|---|
| 1/4 | 1/4 | 3/8 | #3 | – | 5 |
| 5/16 | 5/16 | 7/16 | #3 | – | 8 |
| 3/8 | 3/8 | 1/2 | #4 | 1/2 | 15 |
| 1/2 | 1/2 | 9/16 | – | 5/8 | 25 |
| 5/8 | 5/8 | 3/4 | – | 3/4 | 50 |
| 3/4 | 3/4 | 15/16 | – | – | 90 |
| |||||
