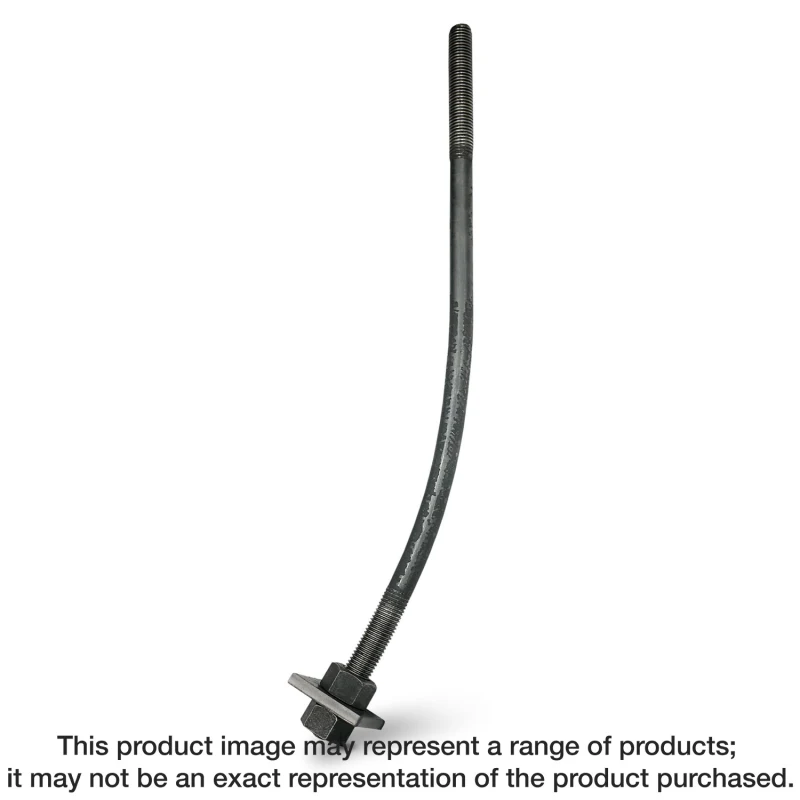

Simpson Strong-Tie SB7/8X24HDG SB 7/8 in. Dia. x 24 in. Hot-Dip Galvanized Anchor Bolt
SKU: SB7/8X24HDG
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB7/8x24 is designed to maximize performance with minimum embedment for holdowns utilizing a 7/8-in. diameter anchor.
Available Sizes & Options
Product Details
Key Features
- Identification on the bolt head showing embedment angle and model
- Sweep geometry to optimize position in form
- Rolled thread for higher tensile capacity
- Hex nuts and plate washer fixed in position
- Available in HDG for additional corrosion resistance
Material
- ASTM F-1554, Grade 36
Finish
- None. May be ordered HDG.
Installation
- Installation Guide
- SB is only for concrete applications poured monolithically except where noted.
- Top nuts and washers for holdown attachment are not supplied with the SB; install standard nuts, couplers and/or washers as required.
- On HDG SB anchors, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563, for example Simpson Strong-Tie NUT5/8-OST, NUT7/8-OST and NUT1-OST, CNW5/8-OST, CNW7/8-OST and CNW1-OST.
- Install SB before the concrete pour using AnchorMate® anchor bolt holders. Install the SB per the plan view detail.
- Minimum concrete compressive strength is 2,500 psi.
- When rebar is required it does not need to be tied to the SB.
