Product Description

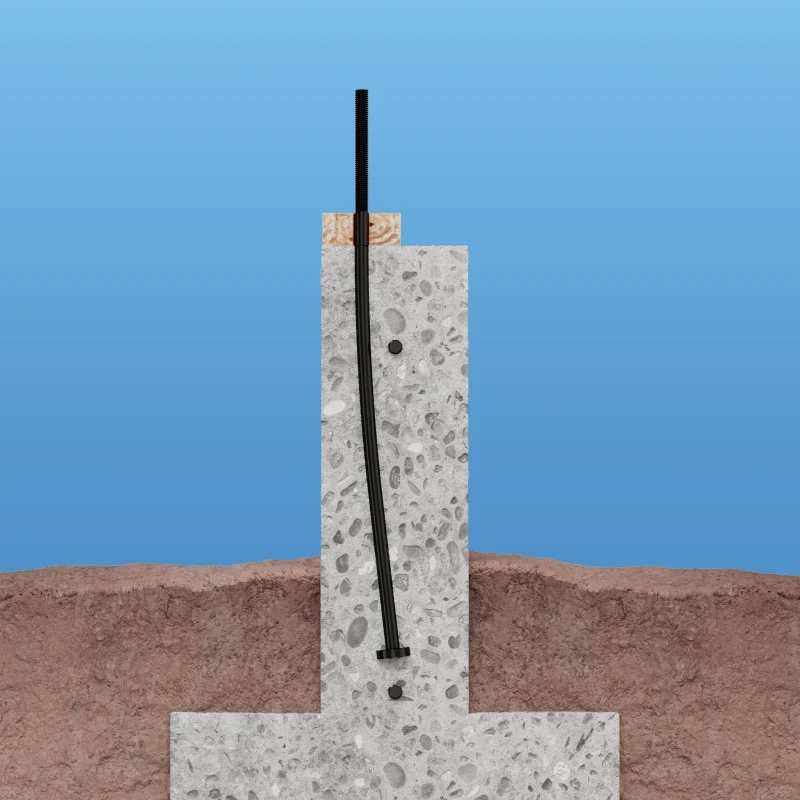

The Simpson Strong-Tie® SABR™ anchor bolt is a cast-in-place anchor that comes in a wide range of diameters. With a 6 in. threaded section, this anchor bolt accommodates a variety of holdown seat heights, including all Simpson Strong-Tie holdowns, when installed on a 2x or 3x sill plate. The one-piece sweep design maximizes its position in the concrete, providing increased tension capacity.

Available Sizes & Options

SKUProductStatus
SABR7/8X28HDGSimpson Strong-Tie SABR7/8X28HDG SABR™ 7/8 in. x 28 in. Hot-Dip Galvanized Anchor Bolt CurrentAvailable
3GWS3710PSimpson Strong-Tie 3GWS3710P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS373PSimpson Strong-Tie 3GWS373P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS376PSimpson Strong-Tie 3GWS376P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS5010PSimpson Strong-Tie 3GWS5010P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS503PSimpson Strong-Tie 3GWS503P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS506PSimpson Strong-Tie 3GWS506P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS6210PSimpson Strong-Tie 3GWS6210P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS623PSimpson Strong-Tie 3GWS623P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS626PSimpson Strong-Tie 3GWS626P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS7513PSimpson Strong-Tie 3GWS7513P Opti-Mesh 13 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
3GWS758PSimpson Strong-Tie 3GWS758P Opti-Mesh 8 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
ADT30SSimpson Strong-Tie ADT30S ADT30S Manual Dispensing Tool for 30 oz. CartridgeAvailable
ADT813SSimpson Strong-Tie ADT813S ADT813S Steel Adhesive Dispensing Tool for 12.5 oz. CartridgeAvailable
AM 1Simpson Strong-Tie AM 1 AnchorMate® 1-in. Dia. Anchor Bolt Holder — Black (100-Qty)Available
AM 1/2Simpson Strong-Tie AM 1/2 AnchorMate® 1/2-in. Dia. Anchor Bolt Holder — Yellow (100-Qty) (Pack of 60)Available
AM 3/4Simpson Strong-Tie AM 3/4 AnchorMate® 3/4-in. Dia. Anchor Bolt Holder — Red (100-Qty) (Pack of 60)Available
AM 5/8Simpson Strong-Tie AM 5/8 AnchorMate® 5/8-in. Dia. Anchor Bolt Holder — Blue (100-Qty) (Pack of 60)Available
AM 5/8-RP10Simpson Strong-Tie AM 5/8-RP10 AnchorMate® 5/8 in. Dia. Anchor Bolt Holder — Blue (10-Qty) (Pack of 5)Available
AM 7/8Simpson Strong-Tie AM 7/8 AnchorMate® 7/8-in. Dia. Anchor Bolt Holder — Green (100-Qty) (Pack of 60)Available
AMN19Q-RP5Simpson Strong-Tie AMN19Q-RP5 AMN19Q Acrylic-Tie Mixing Nozzle (5-Qty)Available

Product Details

Key Features

  • Single anchor solution for many foundation types
  • Stamped model and alignment information on the head makes it easy to identify and align for installation
  • Sweep design allows placement near the edge of concrete while increasing tension capacity
  • One-piece design eliminates potential loss of components
  • Single length for each diameter simplifies specification and makes it easier for dealers to order and inventory

Material

  • ASTM F1554 Grade 55

Finish

  • None. May be ordered HDG.

Installation

  • Installation Guide
  • SABR anchor bolts are only for concrete applications poured monolithically except where noted.
  • Top nuts and washers for holdown attachment are not supplied with the SABR; install standard nuts, couplers and/or washers as required.
  • On HDG SABR anchors, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563 — for example, the Simpson Strong-Tie NUT5/8-OST, NUT3/4-OST, NUT7/8-OST, NUT1-OST, NUT1 1/4-OST, CNW5/8-OST, CNW3/4-OST, CNW7/8-OST, CNW1-OST, or CNW1 1/4-OST.
  • Install SABR anchor bolts before the concrete pour using AnchorMate® anchor bolt holders. Install the SABR per the plan view detail.
  • Minimum concrete compressive strength is 2,500 psi.
  • When rebar is required, it does not need to be tied to the SABR.
  • See engineering letter L-A-SABRFTG for two-pour installations.
