Product Description

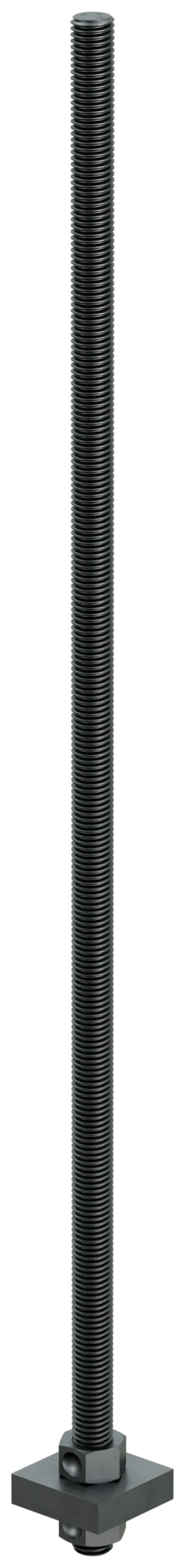

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.

Available Sizes & Options

SKUProductStatus
PAB5-24-HDGSimpson Strong-Tie PAB5-24-HDG PAB™ 5/8 in. x 24 in. HDG Pre-Assembled Anchor Bolt w/ Washer CurrentAvailable
3GWS3710PSimpson Strong-Tie 3GWS3710P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS373PSimpson Strong-Tie 3GWS373P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS376PSimpson Strong-Tie 3GWS376P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS5010PSimpson Strong-Tie 3GWS5010P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS503PSimpson Strong-Tie 3GWS503P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS506PSimpson Strong-Tie 3GWS506P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS6210PSimpson Strong-Tie 3GWS6210P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS623PSimpson Strong-Tie 3GWS623P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS626PSimpson Strong-Tie 3GWS626P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS7513PSimpson Strong-Tie 3GWS7513P Opti-Mesh 13 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
3GWS758PSimpson Strong-Tie 3GWS758P Opti-Mesh 8 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
ADT30SSimpson Strong-Tie ADT30S ADT30S Manual Dispensing Tool for 30 oz. CartridgeAvailable
ADT813SSimpson Strong-Tie ADT813S ADT813S Steel Adhesive Dispensing Tool for 12.5 oz. CartridgeAvailable
AM 1Simpson Strong-Tie AM 1 AnchorMate® 1-in. Dia. Anchor Bolt Holder — Black (100-Qty)Available
AM 1/2Simpson Strong-Tie AM 1/2 AnchorMate® 1/2-in. Dia. Anchor Bolt Holder — Yellow (100-Qty) (Pack of 60)Available
AM 3/4Simpson Strong-Tie AM 3/4 AnchorMate® 3/4-in. Dia. Anchor Bolt Holder — Red (100-Qty) (Pack of 60)Available
AM 5/8Simpson Strong-Tie AM 5/8 AnchorMate® 5/8-in. Dia. Anchor Bolt Holder — Blue (100-Qty) (Pack of 60)Available
AM 5/8-RP10Simpson Strong-Tie AM 5/8-RP10 AnchorMate® 5/8 in. Dia. Anchor Bolt Holder — Blue (10-Qty) (Pack of 5)Available
AM 7/8Simpson Strong-Tie AM 7/8 AnchorMate® 7/8-in. Dia. Anchor Bolt Holder — Green (100-Qty) (Pack of 60)Available
AMN19Q-RP5Simpson Strong-Tie AMN19Q-RP5 AMN19Q Acrylic-Tie Mixing Nozzle (5-Qty)Available

Product Details

Key Features

  • Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36" (in 6" increments)
  • Available in standard and high-strength steel
  • Head stamp contains the No Equal® sign, diameter designation and an "H" on high-strength rods

Material

  • Standard Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi
  • High-Strength Steel (up to 1" dia.) — ASTM A449; Fu = 120 ksi
  • High-Strength Steel (1 1/8" and 1 1/4" dia.) – ASTM A193 B7 or F1554 Grade 105; Fu = 125 ksi

Finish

  • None or HDG

Installation

  • On HDG PABs, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563; for example, Simpson Strong-Tie® NUT5/8-OST, NUT7/8-OST, CNW5/8-OST, CNW7/8-OST. Couplers may be special ordered with both ends oversized. Couplers may be oversized on both ends. Contact Simpson Strong-Tie.

Ordering Information

  • When calling out PAB anchor bolts, substitute the desired length for the "XX" in the Root Model Number
  • For a 5/8" x 18" anchor bolt, the model number would be PAB5-18 (or PAB5H-18 for high strength)
