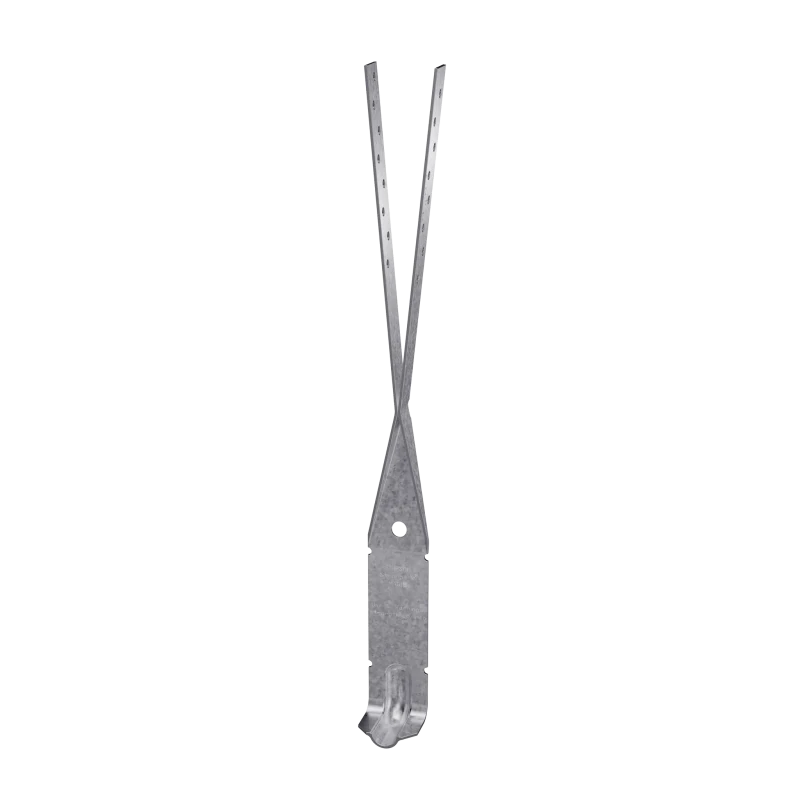

Simpson Strong-Tie MAB15Z-R MAB 13-1/8 in. ZMAX® Galvanized Mudsill Anchor
SKU: MAB15Z-R
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Mudsill anchors provide an alternative to anchor bolts. They easily mount on forms and make finishing easier. The unique design provides installation flexibility, eliminating problems with misplaced anchor bolts. Suitable for stemwall or slab foundations, mudsill anchors are one piece so there are no more nuts and washers to lose.
Available Sizes & Options
Product Details
Key Features
- Suitable for stem wall, concrete block or slab foundations
- One-piece design, so there are no nuts and washers to lose
- An alternative to anchor bolts
Material
- 18 gauge
Finish
- Galvanized or ZMAX® coating; see Corrosion Information
Installation
- Installation Guide
- Use all specified fasteners; see General Notes
- Concrete:
- Concrete shall have a minimum f'c = 2,500 psi
- Not for use where a horizontal cold joint exists between the slab and foundation wall or footing beneath, unless provisions are made to transfer the load
- Not for use in slabs poured over foundation walls formed of concrete block or with brick and 4" masonry block stem walls
- GFCMU:
- GFCMU shall have a minimum f'm = 1,500 psi
- Fill GFCMU cell with grout first, then place into the grouted cell and adjust into position; attach mudsill to anchor only after grout cures
- Tested in standard 8" GFCMU
