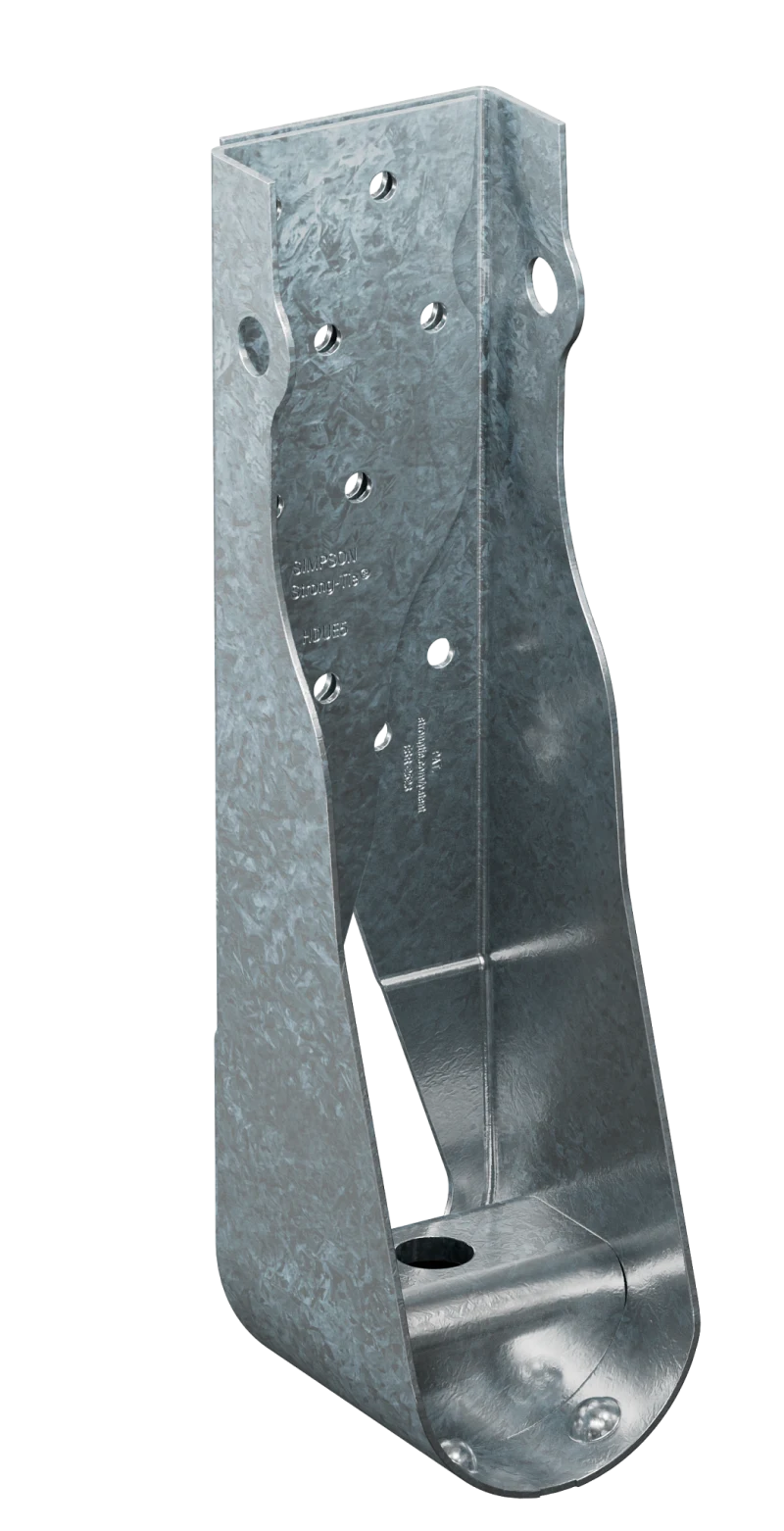

Simpson Strong-Tie HDUE5-SDS3HDG HDUE™ 11-5/16 in. Hot-Dip Galvanized Predeflected Holdown with Strong-Drive® SDS Screws
Product Description
The Simpson Strong-Tie® HDUE™ holdown delivers exceptional strength and reliability for securing shearwalls, braced wall panels and other lateral-force-resisting applications in wood construction. It features a predeflected seat that reduces deflection under load, an overlapping back plate for increased strength and optimized screw patterns to prevent splitting, ensuring superior performance. Installation is fast and efficient with Simpson Strong-Tie Strong‑Drive® SDS Heavy‑Duty Connector screws, making it a dependable choice for modern residential construction.
Available Sizes & Options
Product Details
Key Features
- Predeflected seat reduces deflection under load
- Angled fastening in the four larger sizes engages the screws in tension for higher load capacity, reducing the number of screws required
- Angled fastening tabs in the four larger sizes help drive the fastener at a 45° angle, and offset holes on the second back plate block the fastener from being driven straight
- Overlapping back plate increases fastener strength and shear values, helping prevent post splitting
- Optimized screw patterns reduce splitting at the end of the post and maximize individual fastener capacity
- Installs with Strong‑Drive SDS Heavy‑Duty Connector screws (included)
- Extruded seat adds a greater cross-sectional steel section for added strength
- Teardrop holes allow higher and more even distribution of load
Material
- HDUE3/HDUE5/HDUE7 – 14 ga.; HDUE9/HDUE13 – 12 ga.; HDUE17 – 10 ga.
Finish
- G90 and HDG
Installation
- Installation Guide
- See General Notes for Holdowns and Tension Ties
- Set the correct size cast-in-place anchor bolt
- Place the HDUE holdown over the anchor bolt
- The HDUE requires no additional washer
- HDUE13 requires heavy hex nut (provided)
- Fasteners and crescent washer are included with the holdowns; to order replacements, please contact Simpson Strong-Tie
For HDUE3 and HDUE5:
- Install all Strong-Drive SDS Heavy-Duty Connector Screws (included) perpendicular into the wood member
For HDUE7, HDUE9, HDUE13, and HDUE17:
- Install at least one perpendicular Strong-Drive SDS Heavy-Duty Connector Screw (included) into the wood member to set the holdown
- Install the remaining screws, including both perpendicular and angled screws, into all holes (both round and tabbed) in the wood member
- Place and orientate the crescent washer (included) over the anchor bolt
- Anchor bolt nut should be finger tight plus 1/3 to 1/2 turn with a hand wrench
