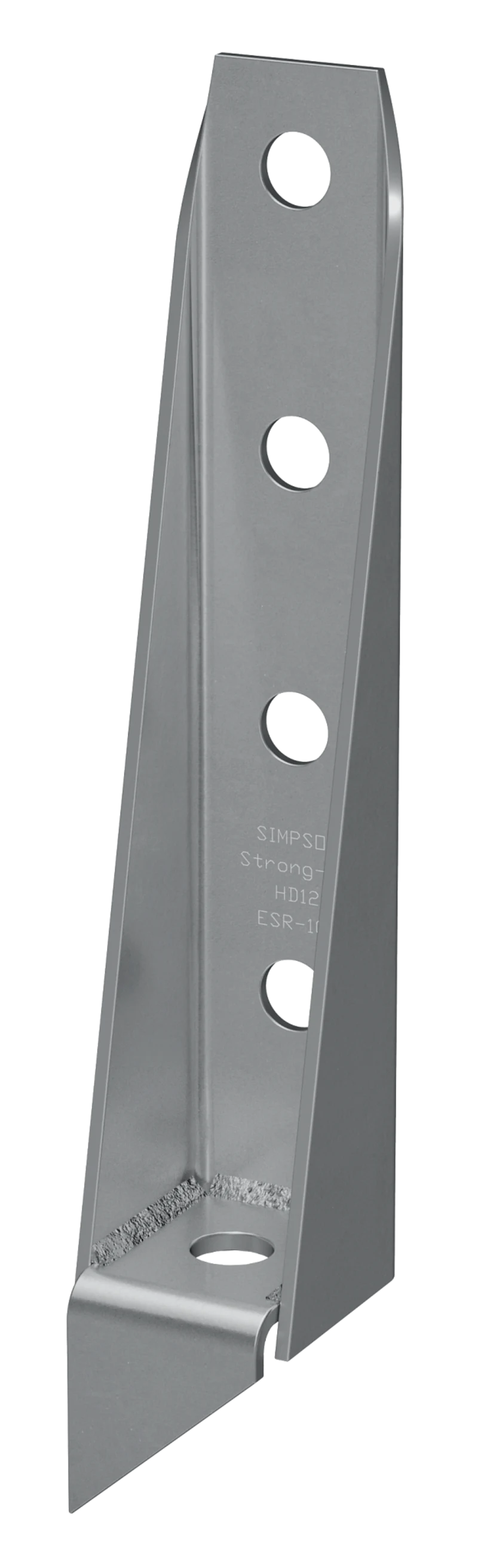

Simpson Strong-Tie HD12 HD 20-5/16 in. Bolted Holdown
SKU: HD12
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
The Simpson Strong-Tie® HD holdown is designed to create high allowable loads for both vertical and horizontal applications in wood construction. This holdown is installed with bolts into posts or columns. The HD can be installed back to back when eccentricity is an issue.
Available Sizes & Options
Product Details
Key Features
- High-capacity low-deflection holdown
- Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
- May be raised and installed off the sill plate
Material
- See table
Finish
- Simpson Strong-Tie gray paint; HDG available
Installation
- Installation Guide
- See General Notes for Holdowns and Tension Ties
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2015/2018/2024 NDS, section 12.1.3.2)
- Stud bolts should be snugly tightened with standard-cut washers between the wood and nut (BPs are required in the City and County of Los Angeles)
- Standard-cut washer is required under the anchor nut for HD12 with 1" anchor and HD19 with 1 1/8" anchors
