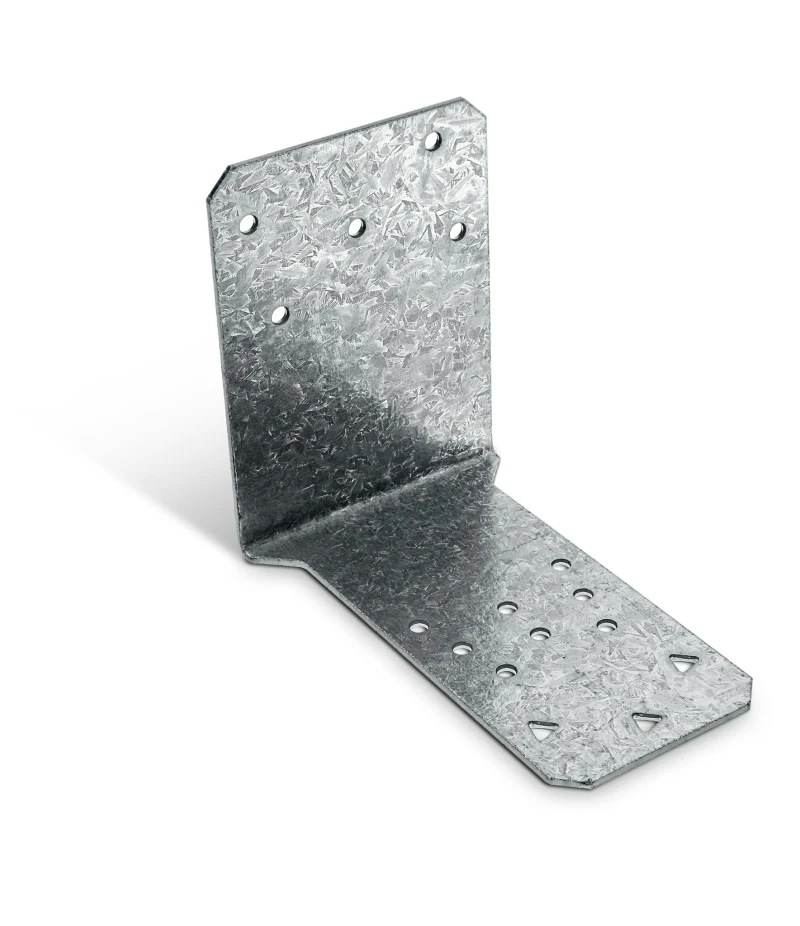

Simpson Strong-Tie FWANZ FWANZ ZMAX® Galvanized Nail-On Foundation Wall Angle
SKU: FWANZ
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
FWA foundation anchors connect the foundation or basement walls to the floor system to resist out-of-plane forces imposed by soil pressure. The FWANZ fastens to the mudsill with nails, relying on other anchorage (by Designer) to anchor the sill plate to the foundation. Spacing of the FWA anchors is independent of the joist spacing, allowing for a multitude of options based on soil pressures.
Available Sizes & Options
Product Details
Key Features
- Compatible with solid sawn joists, I-joists and floor trusses
- Testing performed on most common rim materials and types
- Addresses design needs set forth in Section 1610.1 in the 2015 / 2018 / 2021/ 2024 IBC
- Eliminates the need of costly cantilevered foundation designs
Material
- 14 gauge
Finish
- ZMAX® coating; see Corrosion Information
Installation
- Installation Guide
- Use all specified fasteners; see General Notes.
- Connector must be fastened directly to the outside face of the rim board with (5) 0.148" x 1 1/2" long nails.
- Connector must be located within 4" of adjacent joist/blocking for floor joist spacing up to 48" o.c. and may be centered between joists/blocking for 16" o.c. floor joist spacing.
- When floor joists are parallel to the rim board, full depth blocking shall be used in the first two bays of the floor.
- Splice joint not permitted on rim board in same bay unless blocking is placed on both sides of the splice.
- When I-joist rim material is used, backer blocks must be used. Installed per manufacturer’s recommendations.
Catalog Pages
