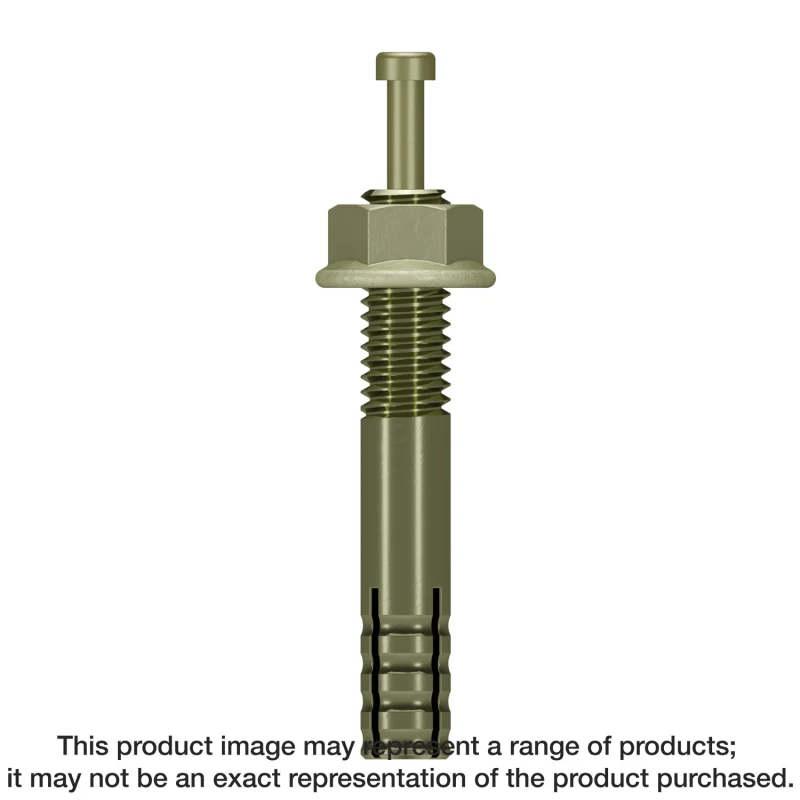

Simpson Strong-Tie EZAC37238 Easy-Set 3/8 in. x 2-3/8 in. Pin-Drive Expansion Anchor (50-Qty) (Pack of 5)
All Anchors & Connectors

Simpson Strong-Tie EZAC37238 Easy-Set 3/8 in. x 2-3/8 in. Pin-Drive Expansion Anchor (50-Qty) (Pack of 5)

SKU: EZAC37238
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The Simpson Strong-Tie® EZAC easy-set anchor is a pin-drive expansion anchor for medium- and heavy-duty fastening applications into concrete. The EZAC anchor provides holding power in concrete base materials including both concrete masonry unit (CMU) and brick. The anchor includes an integrated nut and washer for easy installation.

Available Sizes & Options

SKUProductStatus
EZAC37238Simpson Strong-Tie EZAC37238 Easy-Set 3/8 in. x 2-3/8 in. Pin-Drive Expansion Anchor (50-Qty) (Pack of 5) CurrentAvailable
3GWS3710PSimpson Strong-Tie 3GWS3710P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS373PSimpson Strong-Tie 3GWS373P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS376PSimpson Strong-Tie 3GWS376P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod for SET-3GAvailable
3GWS5010PSimpson Strong-Tie 3GWS5010P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS503PSimpson Strong-Tie 3GWS503P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS506PSimpson Strong-Tie 3GWS506P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 1/2 in. Rod for SET-3GAvailable
3GWS6210PSimpson Strong-Tie 3GWS6210P Opti-Mesh 10 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS623PSimpson Strong-Tie 3GWS623P Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS626PSimpson Strong-Tie 3GWS626P Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod for SET-3GAvailable
3GWS7513PSimpson Strong-Tie 3GWS7513P Opti-Mesh 13 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
3GWS758PSimpson Strong-Tie 3GWS758P Opti-Mesh 8 in. Epoxy Adhesive Plastic Screen Tube for 3/4 in. Rod for SET-3GAvailable
ADT30SSimpson Strong-Tie ADT30S ADT30S Manual Dispensing Tool for 30 oz. CartridgeAvailable
ADT813SSimpson Strong-Tie ADT813S ADT813S Steel Adhesive Dispensing Tool for 12.5 oz. CartridgeAvailable
AM 1Simpson Strong-Tie AM 1 AnchorMate® 1-in. Dia. Anchor Bolt Holder — Black (100-Qty)Available
AM 1/2Simpson Strong-Tie AM 1/2 AnchorMate® 1/2-in. Dia. Anchor Bolt Holder — Yellow (100-Qty) (Pack of 60)Available
AM 3/4Simpson Strong-Tie AM 3/4 AnchorMate® 3/4-in. Dia. Anchor Bolt Holder — Red (100-Qty) (Pack of 60)Available
AM 5/8Simpson Strong-Tie AM 5/8 AnchorMate® 5/8-in. Dia. Anchor Bolt Holder — Blue (100-Qty) (Pack of 60)Available
AM 5/8-RP10Simpson Strong-Tie AM 5/8-RP10 AnchorMate® 5/8 in. Dia. Anchor Bolt Holder — Blue (10-Qty) (Pack of 5)Available
AM 7/8Simpson Strong-Tie AM 7/8 AnchorMate® 7/8-in. Dia. Anchor Bolt Holder — Green (100-Qty) (Pack of 60)Available
AMN19Q-RP5Simpson Strong-Tie AMN19Q-RP5 AMN19Q Acrylic-Tie Mixing Nozzle (5-Qty)Available

Product Details

Key Features

  • Integrated nut and washer to help keep track of parts
  • Provides a strong connection of elements to concrete through expansion
  • Increases overall strength of masonry projects

Material

  • Carbon steel

Finish

  • Yellow zinc dichromate plated

Design Information and Load Tables

Caution

  • Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity

Installation

  1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus 1/4" to allow for pin extension and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling.
  2. Adjust the nut for required embedment. Place the anchor through the fixture and into the hole.
  3. Hammer the center pin until the bottom of the head is flush with top of anchor.



Easy-Set Diameter (in.) Drill Bit Size (in.) Min. Fixture Hole (in.) Wrench Size (in.)
3/8 3/8 7/16 9/16
1/2 1/2 9/16 3/4
5/8 5/8 11/16 15/16
