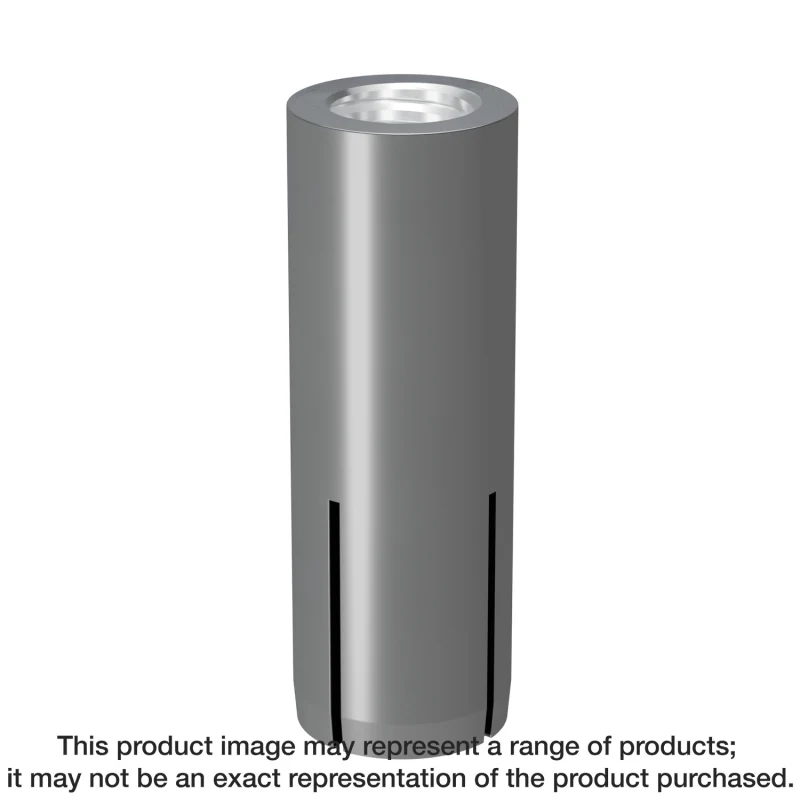

Simpson Strong-Tie DIA62SS DIA Type 303/304 Stainless-Steel Drop-In Internally Threaded Anchor for 5/8-in. Rod (25-Qty)
SKU: DIA62SS
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Drop-In anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Available in stainless steel (DIA) or short (DIAS) versions. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Available Sizes & Options
Product Details
Key Features
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
Material
- Stainless steel
Design Information and Load Tables
Caution
- Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
Installation
- Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/8" for flush mounting. Blow the hole clean using compressed air. Overhead installations need not be blown clean.
- Insert designated anchor into hole. Tap with hammer until flush against surface.
- Using the designated drop-in setting tool, drive expander plug toward the bottom of the anchor until shoulder of setting tool makes contact with the top of the anchor.
- Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
