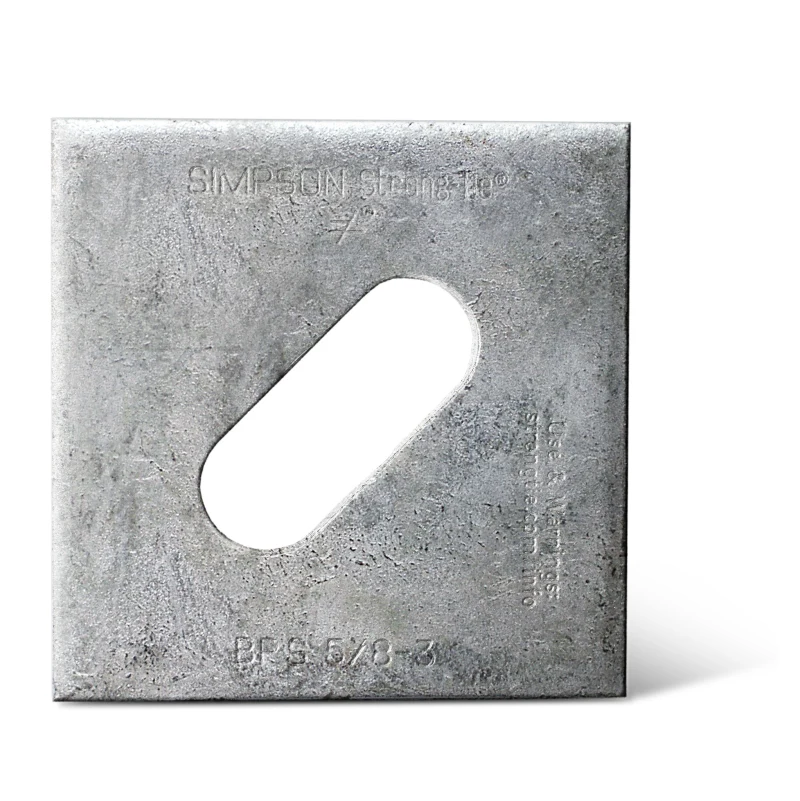

Simpson Strong-Tie BPS 5/8-3HDG BPS 3 in. x 3 in. HDG Slotted Bearing Plate with 5/8 in. Bolt Dia.
SKU: BPS 5/8-3HDG
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections. Bearing plates are typically used on foundation anchor bolts in place of cut washers.
Available Sizes & Options
Product Details
Key Features
- Eliminates the need for standard-cut washers when used with Titen HD® heavy-duty screw anchors
- Slotted hole allows for adjustability
- May be ordered with a hot-dip galvanized (HDG) finish for higher corrosion resistance
Material
- 3 ga.
Finish
- None or HDG; see Corrosion Information
Installation
- Installation Guide
- See General Notes.
- For shearwall applications, position edge of plate washer within 1/2" of sheathed edge of sill plate.
- Standard cut-washer required with BPS slotted bearing plates. Washer not required when used with Titen HD heavy-duty screw anchors.
- Tighten BPS to each anchor bolt with nut and standard cut-washer.
