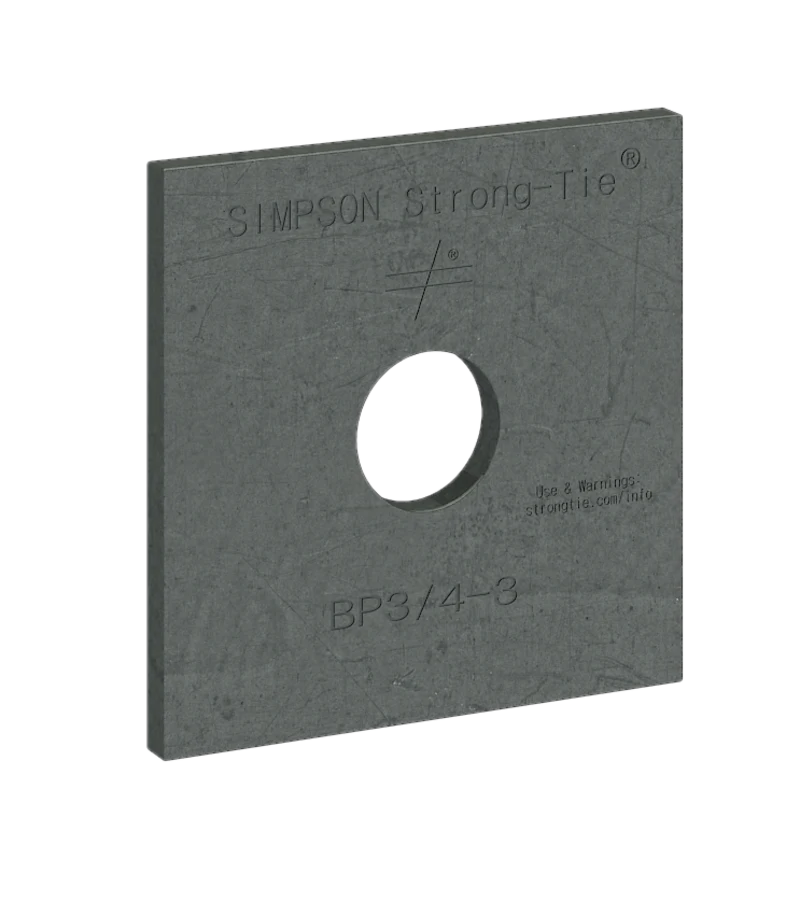

Simpson Strong-Tie BP 3/4-3 BP 3 in. x 3 in. Bearing Plate with 3/4 in. Bolt Dia.
SKU: BP 3/4-3
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections. Bearing plates are typically used on foundation anchor bolts in place of cut washers.
Available Sizes & Options
Product Details
Key Features
- Replaces standard cut-washers while providing a greater bearing surface
- Sized for most common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8" and 1"
- May be ordered HDG for higher corrosion resistance
Material
- See table
Finish
- See table; see Corrosion Information. BPs also available in black powder coat; see BPPC Bearing Plate.
Installation
- See General Notes.
- For shearwall applications, position edge of plate washer within 1/2" of sheathed edge of sill plate.
- The BP5/8SKT uses 1/4" x 1 1/2" Strong-Drive® SDS Heavy-Duty Connector screws to provide lateral resistance when 5/8"-diameter sill holes are overdrilled (screws are provided). The shear capacity of the connection and the sill/anchor bolt shall be determined by the designer for each installation.
- No additional standard cut-washer required.
- Tighten each anchor bolt with a nut and BP.
